本文实例为大家分享了Android studio实现简单计算器的具体代码,供大家参考,具体内容如下

需求分析及概要设计

目的

开发一个简单的计算器App,使之能够完成加减乘除混合运算

工具及环境

使用java语言,在Android studio平台上进行开发

功能设计

  • “ ”:实现两数相加
  • “-”:实现两数相减
  • “*”:实现两数相乘
  • “/”:实现两数相除
  • “=”:计算并得出正确结果
  • “C”:清屏
  • “Backspace”:倒退

设计思路

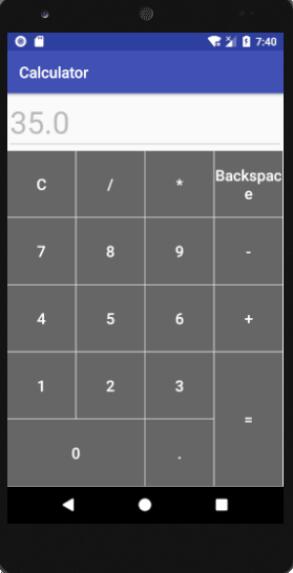

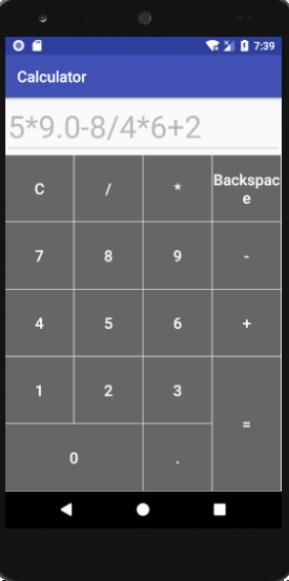

1、首先设计一个可视化的界面,供用户输入数据并查看结果。
2、用户可通过点击相应按钮输入正确的表达式(注意:这里只实现对正确表达式的计算处理),最后按"="得出正确结果。在计算过程中可以通过点击倒退键修改输入内容,在进行下一次的运算之前必须先进行清零操作。
3、设计好的计算器应可以进行加减乘除混合四则运算,且可以进行小数和整数运算

详细设计

当用户点击按钮时,用SringBuilder变量记录其输入的运算式,并显示到文本区中。

当用户点击"="时,把文本区的运算式拿出来,首先将它内部的一个一个字节拼接成独立的运算数和运算符,然后存储在一个ArrayList数组中,接着再新建两个ArrayList数组,用来分别存放运算数和运算符,然后遍历存储运算式的ArrayList数组,把其中的运算数和运算符分别放进不同的ArrayList中,每一次放置运算符时,都要先和已存在的运算符进行比较,若要放进的运算符优先级低于或等于运算符数组中的运算符,则弹出一个运算符,并从运算数数组中弹出两个运算数,然后进行运算,并把结果送入运算数数组中,直到遇到比自己优先级低的运算符或运算符数组为空时,则送入该运算符。当遍历到运算式末尾时,依次弹出运算符中的运算符,并对应弹出运算数进行运算直到运算符数组为空,此时运算数数组中只有一个数据就是最终的结果

代码

MainAcivity.java

package com.example.qw.calculator;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import java.lang.reflect.Method;
import java.math.BigDecimal;
import java.util.ArrayList;
import java.util.List;

public class MainActivity extends AppCompatActivity{

 private StringBuilder show_equation=new StringBuilder();//显示运算式
 private ArrayList calculate_equation;//计算式
 private int signal=0;//为0 时表示刚输入状态;为1 时表示当前在输出结果上继续输入
 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main);
 //初始化
 show_equation=new StringBuilder();
 calculate_equation=new ArrayList<>();
 Button zero=(Button)findViewById(R.id.zero);
 Button one=(Button)findViewById(R.id.one);
 Button two=(Button)findViewById(R.id.two);
 Button three=(Button)findViewById(R.id.three);
 Button four=(Button)findViewById(R.id.four);
 Button five=(Button)findViewById(R.id.five);
 Button six=(Button)findViewById(R.id.six);
 Button seven=(Button)findViewById(R.id.seven);
 Button eight=(Button)findViewById(R.id.eight);
 Button nine=(Button)findViewById(R.id.nine);
 Button cls=(Button)findViewById(R.id.cls);
 Button div=(Button)findViewById(R.id.div);
 Button mul=(Button)findViewById(R.id.mul);
 Button backspace=(Button)findViewById(R.id.Backspace);
 Button sub=(Button)findViewById(R.id.sub);
 Button add=(Button)findViewById(R.id.add);
 final Button equal=(Button)findViewById(R.id.equal);
 final Button point=(Button)findViewById(R.id.spot);
 final EditText result=(EditText)findViewById(R.id.result);
 result.setCursorVisible(true);
 disableShowInput(result);
 //点击文本框时光标始终在文本末尾
 result.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View view) {
  result.setSelection(result.getText().length());
  }
 });
 zero.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v){
   if(!(show_equation.toString().equals("0"))){
   if(signal==0){
    show_equation.append("0");
    result.setText(show_equation);
    result.setSelection(result.getText().length());
   }else{
    show_equation.delete(0,show_equation.length());
    show_equation.append("0");
    result.setText(show_equation);
    result.setSelection(result.getText().length());
    signal=0;
   }
   }
  }
 });
 one.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("1");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("1");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
 two.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("2");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("2");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
 three.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("3");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("3");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
  four.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("4");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("4");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
 five.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("5");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("5");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
 six.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("6");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("6");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
 seven.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("7");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("7");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
 eight.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("8");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("8");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
 nine.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   show_equation.append("9");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append("9");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });
 cls.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  show_equation.delete(0,show_equation.length());
  calculate_equation.clear();
  signal=0;
  result.setText("");
  }
 });
 backspace.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(!(show_equation.toString().equals(""))) {
   if(signal==0){
   show_equation.deleteCharAt(show_equation.length() - 1);
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   }else{
   show_equation.delete(0,show_equation.length());
   result.setText("");
   signal=0;
   }
  }
  }
 });
 point.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(signal==0){
   String a=show_equation.toString();
   if(a.equals("")){
   show_equation.append(".");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
   }else{
   int i;
   char t='0';
   for(i=a.length();i>0;i--){
    t=a.charAt(i-1);
    if(t=='.'||t==' '||t=='-'||t=='*'||t=='/')
    break;
   }
   if(i==0){
    show_equation.append(".");
    result.setText(show_equation);
    result.setSelection(result.getText().length());
   }else if(t==' '||t=='-'||t=='*'||t=='/'){
    show_equation.append(".");
    result.setText(show_equation);
    result.setSelection(result.getText().length());
   }
   }
  }else{
   show_equation.delete(0,show_equation.length());
   show_equation.append(".");
   result.setText(".");
   result.setSelection(result.getText().length());
   signal=0;
  }
  }
 });

 equal.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  //判断用户是否输入了内容
  if(!show_equation.toString().equals("")){
   signal=1;
   char temp=show_equation.charAt(show_equation.length()-1);
   if(show_equation.charAt(0)=='-')
   show_equation.insert(0,"0");
   if(temp==' '||temp=='-')
   show_equation.append("0");
   if(temp=='*'||temp=='/')
   show_equation.append("1");
   StringBuilder temp1=new StringBuilder();
   for(int i=0;i<show_equation.length();i  ){
   if(show_equation.charAt(i)>='0'&&show_equation.charAt(i)<='9'||show_equation.charAt(i)=='.'){
    temp1.append(String.valueOf(show_equation.charAt(i)));
   }else if(show_equation.charAt(i)=='N'){
    calculate_equation.add("NaN");
    //跳过2个字符
    i=i 2;
   }else if(show_equation.charAt(i)=='∞'){
    calculate_equation.add("∞");
   }
   else
   {
    if(temp1.length()!=0){
    calculate_equation.add(temp1.toString());
    temp1.delete(0,temp1.length());
    }
    calculate_equation.add(String.valueOf(show_equation.charAt(i)));
   }
   }
   if(temp1.length()!=0){
   calculate_equation.add(temp1.toString());
   }
   calculate_equation.add("#");
   String temp8=calculate(calculate_equation);
   result.setText(temp8);
   result.setSelection(result.getText().length());
   show_equation.delete(0,show_equation.length());
   calculate_equation.clear();
   show_equation.append(temp8);
  }
  }
 });
 add.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  //判断用户是否输入了内容
  if(!(show_equation.toString().equals(""))) {
   signal=0;
   char temp=show_equation.charAt(show_equation.length()-1);
   if(temp==' '||temp=='-'||temp=='*'||temp=='/')
   {
   show_equation.deleteCharAt(show_equation.length()-1);
   show_equation.append(" ");
   }
   else
   show_equation.append(" ");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }
  }
 });
 sub.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  //判断用户是否输入了内容
  if(!(show_equation.toString().equals(""))) {
   signal=0;
   char temp=show_equation.charAt(show_equation.length()-1);
   if(temp==' '||temp=='-'||temp=='*'||temp=='/')
   {
   show_equation.deleteCharAt(show_equation.length()-1);
   show_equation.append("-");
   }
   else
   show_equation.append("-");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }
  }
 });

 mul.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  //判断用户是否输入了内容
  if(!(show_equation.toString().equals(""))) {
   signal=0;
   char temp=show_equation.charAt(show_equation.length()-1);
   if(temp==' '||temp=='-'||temp=='*'||temp=='/')
   {
   show_equation.deleteCharAt(show_equation.length()-1);
   show_equation.append("*");
   }
   else
   show_equation.append("*");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }
  }
 });

 div.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  //判断用户是否输入了内容
  if(!(show_equation.toString().equals(""))) {
   signal=0;
   char temp=show_equation.charAt(show_equation.length()-1);
   if(temp==' '||temp=='-'||temp=='*'||temp=='/')
   {
   show_equation.deleteCharAt(show_equation.length()-1);
   show_equation.append("/");
   }
   else
   show_equation.append("/");
   result.setText(show_equation);
   result.setSelection(result.getText().length());
  }
  }
 });
 }
 protected boolean operatorPriorityCompare(char operator1,char operator2)
 {
 int o1=0;
 int o2=0;
 switch (operator1){
  case ' ':{o1=0;break;}
  case '-':{o1=0;break;}
  case '*':{o1=1;break;}
  case '/':{o1=1;break;}
 }
 switch (operator2){
  case ' ':{o2=0;break;}
  case '-':{o2=0;break;}
  case '*':{o2=1;break;}
  case '/':{o2=1;break;}
 }
 if(o1<=o2)
 {
  return false;
 }
 else
  return true;
 }
 //相加
 public static Double Add(Double d1,Double d2) {
 if(d1==Double.NEGATIVE_INFINITY||d1==Double.POSITIVE_INFINITY||d2==Double.NEGATIVE_INFINITY||d2==Double.POSITIVE_INFINITY){
  return d1 d2;
 }
 if(String.valueOf(d1).equals("NaN")||String.valueOf(d1).equals("NaN")){
  return d1 d2;
 }
 BigDecimal b1 = new BigDecimal(Double.toString(d1));
 BigDecimal b2 = new BigDecimal(Double.toString(d2));
 return b1.add(b2).doubleValue();
 }
 //相减
 public static Double Sub(Double d1,Double d2){
 if(d1==Double.NEGATIVE_INFINITY||d1==Double.POSITIVE_INFINITY||d2==Double.NEGATIVE_INFINITY||d2==Double.POSITIVE_INFINITY){
  return d1-d2;
 }
 if(String.valueOf(d1).equals("NaN")||String.valueOf(d1).equals("NaN")){
  return d1-d2;
 }
 if(String.valueOf(d1).equals("NaN")||String.valueOf(d1).equals("NaN")){
  return d1*d2;
 }
 BigDecimal b1=new BigDecimal(Double.toString(d1));
 BigDecimal b2=new BigDecimal(Double.toString(d2));
 return b1.subtract(b2).doubleValue();
 }
 //相乘
 public static Double Mul(Double d1,Double d2){
 if(d1==Double.NEGATIVE_INFINITY||d1==Double.POSITIVE_INFINITY||d2==Double.NEGATIVE_INFINITY||d2==Double.POSITIVE_INFINITY){
  return d1*d2;
 }
 if(String.valueOf(d1).equals("NaN")||String.valueOf(d1).equals("NaN")){
  return d1*d2;
 }
 BigDecimal b1=new BigDecimal(Double.toString(d1));
 BigDecimal b2=new BigDecimal(Double.toString(d2));
 return b1.multiply(b2).setScale(8).doubleValue();
 }
 //相除
 public static Double Div(Double d1,Double d2){
 if(d1==Double.NEGATIVE_INFINITY||d1==Double.POSITIVE_INFINITY||d2==Double.NEGATIVE_INFINITY||d2==Double.POSITIVE_INFINITY){
  return d1/d2;
 }
 if(String.valueOf(d1).equals("NaN")||String.valueOf(d1).equals("NaN")){
  return d1/d2;
 }
 if(d1==0.0&&d2==0.0){
  return Double.NaN;
 }
 if(d2==0.0){
  return d1/d2;
 }
 BigDecimal b1=new BigDecimal(Double.toString(d1));
 BigDecimal b2=new BigDecimal(Double.toString(d2));
 return b1.divide(b2,8,BigDecimal.ROUND_HALF_UP).doubleValue();
 }
 protected String calculate(ArrayList equation){
 Double temp2;
 Double temp3;
 Double result;
 List operator=new ArrayList();
 List<Double> operand=new ArrayList();
 for(int i=0;i<equation.size();i  )
 {
  String temp4=(String) equation.get(i);
  if(temp4.equals(" ")||temp4.equals("-")||temp4.equals("*")||temp4.equals("/"))
  {
  if(operator.size()>0)
  {
   String temp5=operator.get(operator.size()-1).toString();
   while(!(operatorPriorityCompare(temp4.charAt(0),temp5.charAt(0)))&&operator.size()>0)
   {
   operator.remove(operator.size()-1);
   temp3=operand.get(operand.size()-1);
   operand.remove(operand.size()-1);
   temp2=operand.get(operand.size()-1);
   operand.remove(operand.size()-1);
   switch (temp5.charAt(0)){
    case ' ':{result=Add(temp2,temp3);operand.add(result);break;}
    case '-':{result=Sub(temp2,temp3);operand.add(result);break;}
    case '*':{result=Mul(temp2,temp3);operand.add(result);break;}
    case '/':{result=Div(temp2,temp3);operand.add(result);break;}
   }
   if(operator.size()>0)
   {
    temp5=operator.get(operator.size()-1).toString();
   }
   else
    break;
   }
   operator.add(temp4);
  }
  else
   operator.add(temp4);
  }
  else if(temp4.equals("#"))
  {
  while(operator.size()>0)
  {
   String temp6=(String)operator.get(operator.size()-1);
   operator.remove(operator.size()-1);
   temp3=operand.get(operand.size()-1);
   operand.remove(operand.size()-1);
   temp2=operand.get(operand.size()-1);
   operand.remove(operand.size()-1);
   switch (temp6.charAt(0)){
   case ' ':{result=Add(temp2,temp3);operand.add(result);break;}
   case '-':{result=Sub(temp2,temp3);operand.add(result);break;}
   case '*':{result=Mul(temp2,temp3);operand.add(result);break;}
   case '/':{result=Div(temp2,temp3);operand.add(result);break;}
   }
  }
  }
  else
  {
  if(temp4.equals("NaN")){
   operand.add(Double.NaN);
  }else if(temp4.equals("∞")){
   operand.add(Double.POSITIVE_INFINITY);
  }else{
   operand.add(Double.parseDouble(temp4));
  }
  }
 }
 if(operand.get(0)==Double.NEGATIVE_INFINITY) return "-∞";
 if(operand.get(0)==Double.POSITIVE_INFINITY) return "∞";
 return operand.get(0).toString();
 }
 //当API最低版小于21时使用这个函数实现点击文本框不弹出键盘
 public void disableShowInput(EditText et) {
 Class<EditText> cls = EditText.class;
 Method method;
 try {
  method = cls.getMethod("setShowSoftInputOnFocus", boolean.class);
  method.setAccessible(true);
  method.invoke(et, false);
 } catch (Exception e) {
  e.printStackTrace();
 }
 }
}

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:orientation="vertical"
 android:layout_width="match_parent"
 android:layout_height="match_parent">

 <EditText
 android:id="@ id/result"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:textSize="40sp"
 android:enabled="false"/>
 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="0dp"
 android:layout_weight="1"
 android:orientation="horizontal">

 <Button
  android:id="@ id/cls"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="C"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/div"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="/"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/mul"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="*"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/Backspace"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="Backspace"
  android:textAllCaps="false"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 </LinearLayout>

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="0dp"
 android:layout_weight="1"
 android:orientation="horizontal">

 <Button
  android:id="@ id/seven"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="7"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/eight"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="8"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/nine"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="9"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/sub"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="-"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 </LinearLayout>

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="0dp"
 android:layout_weight="1"
 android:orientation="horizontal">

 <Button
  android:id="@ id/four"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="4"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/five"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="5"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/six"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text="6"
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 <Button
  android:id="@ id/add"
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:textSize="20sp"
  android:text=" "
  android:background="@drawable/buttonstytle"
  android:textColor="#ffffff"/>
 </LinearLayout>

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="0dp"
 android:layout_weight="2"
 android:orientation="horizontal">

 <LinearLayout
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:orientation="vertical">

  <LinearLayout
  android:layout_width="match_parent"
  android:layout_height="1dp"
  android:layout_weight="1"
  android:orientation="horizontal">
  <Button
   android:id="@ id/one"
   android:layout_width="0dp"
   android:layout_height="match_parent"
   android:layout_weight="1"
   android:textSize="20sp"
   android:text="1"
   android:background="@drawable/buttonstytle"
   android:textColor="#ffffff"/>
  <Button
   android:id="@ id/two"
   android:layout_width="0dp"
   android:layout_height="match_parent"
   android:layout_weight="1"
   android:textSize="20sp"
   android:text="2"
   android:background="@drawable/buttonstytle"
   android:textColor="#ffffff"/>
  </LinearLayout>
  <LinearLayout
  android:layout_width="match_parent"
  android:layout_height="1dp"
  android:layout_weight="1">
  <Button
   android:id="@ id/zero"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:text="0"
   android:textSize="20sp"
   android:background="@drawable/buttonstytle"
   android:textColor="#ffffff"/>
  </LinearLayout>
 </LinearLayout>
 <LinearLayout
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:orientation="horizontal">
  <LinearLayout
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1"
  android:orientation="vertical">
  <Button
   android:id="@ id/three"
   android:layout_width="match_parent"
   android:layout_height="1dp"
   android:layout_weight="1"
   android:text="3"
   android:textSize="20sp"
   android:background="@drawable/buttonstytle"
   android:textColor="#ffffff"/>
  <Button
   android:id="@ id/spot"
   android:layout_width="match_parent"
   android:layout_height="1dp"
   android:layout_weight="1"
   android:text="."
   android:textSize="20sp"
   android:background="@drawable/buttonstytle"
   android:textColor="#ffffff"/>
  </LinearLayout>
  <LinearLayout
  android:layout_width="0dp"
  android:layout_height="match_parent"
  android:layout_weight="1">
  <Button
   android:id="@ id/equal"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:text="="
   android:textSize="20sp"
   android:background="@drawable/buttonstytle"
   android:textColor="#ffffff"/>
  </LinearLayout>
 </LinearLayout>
</LinearLayout>
</LinearLayout>

buttonstytle.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android" >
 <!-- 主体背景颜色值 -->
 <solid android:color="#666666" />
 <!-- 连框宽度和颜色值 -->
 <stroke
 android:width="0.01dp"
 android:color="#FFFFFF" />
</shape>

####结果分析

启动计算器并输入运算式“59.0-8/46 2”如下图:

结果如下图:

总结

这次做计算器收获很大,首先我对Android studio中的布局有了更深刻的认识,其次在这次编程中熟悉了怎么设置断点调试以快速的找出问题所在。当然,这次的作品也是不够成熟的,因为没有做有关错误表达式的相应处理,因为时间和精力有限,这次只能先做这么多了

注: 今天没事又看了一下这个代码,发现问题很多,简直是惨不忍睹(希望没坑到你们)。比如直接按加、减、乘、除和等号键及后退键会闪退,刚开始一直按 “0” 可以一直输入0,同一个数中可以输入多个小数点等等,我感到很惭愧哈,本人能力有限,不过还是抽时间又改了一下,修复了这些bug,另外也优化了一些东西,上面贴的代码我已经更新了,GitHub上的源码我很快也会更新的,哪里做的不好也希望大家不吝赐教哈 -2018/11/5

链接:源代码下载地址

更多计算器功能实现,请点击专题: 计算器功能汇总 进行学习

关于Android计算器功能的实现,查看专题:Android计算器 进行学习。

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持Devmax。

Android studio实现简单的计算器的更多相关文章

  1. html5 canvas合成海报所遇问题及解决方案总结

    这篇文章主要介绍了html5 canvas合成海报所遇问题及解决方案总结,小编觉得挺不错的,现在分享给大家,也给大家做个参考。一起跟随小编过来看看吧

  2. Html5 video标签视频的最佳实践

    这篇文章主要介绍了Html5 video标签视频的最佳实践,文中通过示例代码介绍的非常详细,对大家的学习或者工作具有一定的参考学习价值,需要的朋友们下面随着小编来一起学习学习吧

  3. HTML5在微信内置浏览器下右上角菜单的调整字体导致页面显示错乱的问题

    HTML5在微信内置浏览器下,在右上角菜单的调整字体导致页面显示错乱的问题,本文给大家介绍的非常详细,对大家的学习或工作具有一定的参考借鉴价值,需要的朋友参考下吧

  4. ios – containerURLForSecurityApplicationGroupIdentifier:在iPhone和Watch模拟器上给出不同的结果

    我使用默认的XCode模板创建了一个WatchKit应用程序.我向iOSTarget,WatchkitAppTarget和WatchkitAppExtensionTarget添加了应用程序组权利.(这是应用程序组名称:group.com.lombax.fiveminutes)然后,我尝试使用iOSApp和WatchKitExtension访问共享文件夹URL:延期:iOS应用:但是,测试NSURL

  5. Ionic – Splash Screen适用于iOS,但不适用于Android

    我有一个离子应用程序,其中使用CLI命令离子资源生成的启动画面和图标iOS版本与正在渲染的启动画面完美配合,但在Android版本中,只有在加载应用程序时才会显示白屏.我检查了config.xml文件,所有路径看起来都是正确的,生成的图像出现在相应的文件夹中.(我使用了splash.psd模板来生成它们.我错过了什么?这是config.xml文件供参考,我觉得我在这里做错了–解决方法在config.xml中添加以下键:它对我有用!

  6. ios – 无法启动iPhone模拟器

    /Library/Developer/CoreSimulator/Devices/530A44CB-5978-4926-9E91-E9DBD5BFB105/data/Containers/Bundle/Application/07612A5C-659D-4C04-ACD3-D211D2830E17/ProductName.app/ProductName然后,如果您在Xcode构建设置中选择标准体系结构并再次构建和运行,则会产生以下结果:dyld:lazysymbolbindingFailed:Symbol

  7. Xamarin iOS图像在Grid内部重叠

    heyo,所以在Xamarin我有一个使用并在其中包含一对,所有这些都包含在内.这在Xamarin.Android中看起来完全没问题,但是在Xamarin.iOS中,图像与标签重叠.我不确定它的区别是什么–为什么它在Xamarin.Android中看起来不错但在iOS中它的全部都不稳定?

  8. 在iOS上向后播放HTML5视频

    我试图在iPad上反向播放HTML5视频.HTML5元素包括一个名为playbackRate的属性,它允许以更快或更慢的速率或相反的方式播放视频.根据Apple’sdocumentation,iOS不支持此属性.通过每秒多次设置currentTime属性,可以反复播放,而无需使用playbackRate.这种方法适用于桌面Safari,但似乎在iOS设备上的搜索限制为每秒1次更新–在我的情况下太慢了.有没有办法在iOS设备上向后播放HTML5视频?解决方法iOS6Safari现在支持playbackRat

  9. 使用 Swift 语言编写 Android 应用入门

    Swift标准库可以编译安卓armv7的内核,这使得可以在安卓移动设备上执行Swift语句代码。做梦,虽然Swift编译器可以胜任在安卓设备上编译Swift代码并运行。这需要的不仅仅是用Swift标准库编写一个APP,更多的是你需要一些框架来搭建你的应用用户界面,以上这些Swift标准库不能提供。简单来说,构建在安卓设备上使用的Swiftstdlib需要libiconv和libicu。通过命令行执行以下命令:gitclonegit@github.com:SwiftAndroid/libiconv-libi

  10. Android – 调用GONE然后VISIBLE使视图显示在错误的位置

    我有两个视图,A和B,视图A在视图B上方.当我以编程方式将视图A设置为GONE时,它将消失,并且它正下方的视图将转到视图A的位置.但是,当我再次将相同的视图设置为VISIBLE时,它会在视图B上显示.我不希望这样.我希望视图B回到原来的位置,这是我认为会发生的事情.我怎样才能做到这一点?编辑–代码}这里是XML:解决方法您可以尝试将两个视图放在RelativeLayout中并相对于彼此设置它们的位置.

随机推荐

  1. Flutter 网络请求框架封装详解

    这篇文章主要介绍了Flutter 网络请求框架封装详解,小编觉得挺不错的,现在分享给大家,也给大家做个参考。一起跟随小编过来看看吧

  2. Android单选按钮RadioButton的使用详解

    今天小编就为大家分享一篇关于Android单选按钮RadioButton的使用详解,小编觉得内容挺不错的,现在分享给大家,具有很好的参考价值,需要的朋友一起跟随小编来看看吧

  3. 解决android studio 打包发现generate signed apk 消失不见问题

    这篇文章主要介绍了解决android studio 打包发现generate signed apk 消失不见问题,具有很好的参考价值,希望对大家有所帮助。一起跟随小编过来看看吧

  4. Android 实现自定义圆形listview功能的实例代码

    这篇文章主要介绍了Android 实现自定义圆形listview功能的实例代码,本文通过实例代码给大家介绍的非常详细,对大家的学习或工作具有一定的参考借鉴价值,需要的朋友可以参考下

  5. 详解Android studio 动态fragment的用法

    这篇文章主要介绍了Android studio 动态fragment的用法,本文给大家介绍的非常详细,对大家的学习或工作具有一定的参考借鉴价值,需要的朋友可以参考下

  6. Android用RecyclerView实现图标拖拽排序以及增删管理

    这篇文章主要介绍了Android用RecyclerView实现图标拖拽排序以及增删管理的方法,帮助大家更好的理解和学习使用Android,感兴趣的朋友可以了解下

  7. Android notifyDataSetChanged() 动态更新ListView案例详解

    这篇文章主要介绍了Android notifyDataSetChanged() 动态更新ListView案例详解,本篇文章通过简要的案例,讲解了该项技术的了解与使用,以下就是详细内容,需要的朋友可以参考下

  8. Android自定义View实现弹幕效果

    这篇文章主要为大家详细介绍了Android自定义View实现弹幕效果,文中示例代码介绍的非常详细,具有一定的参考价值,感兴趣的小伙伴们可以参考一下

  9. Android自定义View实现跟随手指移动

    这篇文章主要为大家详细介绍了Android自定义View实现跟随手指移动,文中示例代码介绍的非常详细,具有一定的参考价值,感兴趣的小伙伴们可以参考一下

  10. Android实现多点触摸操作

    这篇文章主要介绍了Android实现多点触摸操作,实现图片的放大、缩小和旋转等处理,文中示例代码介绍的非常详细,具有一定的参考价值,感兴趣的小伙伴们可以参考一下

返回
顶部
