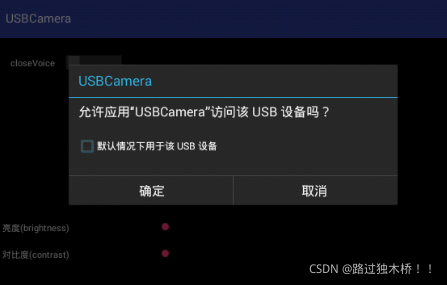

看到当上面的对话框弹出时，可以使用命令查看顶层的活动窗口
adb shell dumpsys window | findstr mCurrentFocus
mCurrentFocus=Window{41ab0ee0 u0 com.android.systemui/com.android.systemui.usb.UsbPermissionActivity}
这就是应用的位置，当然我们也可以是用grep命令来查找这个对话框的.xml文件，进入android源码然后输入命令：
grep '默认情况下用于' ./ -Rn ./SystemUI/res/values-zh-rCN/strings.xml:51: <string name="always_use_device" msgid="1450287437017315906">"默认情况下用于该 USB 设备"</string> ./SystemUI/res/values-zh-rCN/strings.xml:52: <string name="always_use_accessory" msgid="1210954576979621596">"默认情况下用于该 USB 配件"</string>
那么这个对话框的路径在
/android/frameworks/base/packages/SystemUI/res/values-zh-rCN/strings.xml
其相关的内容如下：
<string name="always_use_device" msgid="1450287437017315906">"默认情况下用于该 USB 设备"</string> <string name="usb_device_permission_prompt" msgid="834698001271562057">"允许应用“<xliff:g id="APPLICATION">%1$s</xliff:g>”访问该 USB 设备吗？"
相关应用路径找到.java文件来修改，其位置在:
/android/frameworks/base/packages/SystemUI/src/com/android/systemui/usb/UsbPermissionActivity.java
这就是那个讨厌的对话框对应的java程序，那么来看看这个程序如下：
/*
* Copyright (C) 2011 The Android Open Source Project
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.android.systemui.usb;
import android.app.AlertDialog;
import android.app.PendingIntent;
import android.content.Context;
import android.content.DialogInterface;
import android.content.Intent;
import android.content.pm.ApplicationInfo;
import android.content.pm.PackageManager;
import android.hardware.usb.IUsbManager;
import android.hardware.usb.UsbAccessory;
import android.hardware.usb.UsbDevice;
import android.hardware.usb.UsbManager;
import android.os.Bundle;
import android.os.IBinder;
import android.os.RemoteException;
import android.os.ServiceManager;
import android.os.UserHandle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.CheckBox;
import android.widget.CompoundButton;
import android.widget.TextView;
import com.android.internal.app.AlertActivity;
import com.android.internal.app.AlertController;
import com.android.systemui.R;
public class UsbPermissionActivity extends AlertActivity
implements DialogInterface.OnClickListener, CheckBox.OnCheckedChangeListener {
private static final String TAG = "UsbPermissionActivity";
private CheckBox mAlwaysUse;
private TextView mClearDefaultHint;
private UsbDevice mDevice;
private UsbAccessory mAccessory;
private PendingIntent mPendingIntent;
private String mPackageName;
private int mUid;
private boolean mPermissionGranted;
private UsbDisconnectedReceiver mDisconnectedReceiver;
@Override
public void onCreate(Bundle icicle) {
super.onCreate(icicle);
Intent intent = getIntent();
mDevice = (UsbDevice)intent.getParcelableExtra(UsbManager.EXTRA_DEVICE);
mAccessory = (UsbAccessory)intent.getParcelableExtra(UsbManager.EXTRA_ACCESSORY);
mPendingIntent = (PendingIntent)intent.getParcelableExtra(Intent.EXTRA_INTENT);
mUid = intent.getIntExtra(Intent.EXTRA_UID, -1);
mPackageName = intent.getStringExtra("package");
Log.e(TAG, "mPackageName " mPackageName);
Log.e(TAG, "mUid " mUid);
PackageManager packageManager = getPackageManager();
ApplicationInfo aInfo;
try {
aInfo = packageManager.getApplicationInfo(mPackageName, 0);
} catch (PackageManager.NameNotFoundException e) {
Log.e(TAG, "unable to look up package name", e);
finish();
return;
}
String appName = aInfo.loadLabel(packageManager).toString();
Log.e(TAG, "appName " appName);
final AlertController.AlertParams ap = mAlertParams;
ap.mIcon = aInfo.loadIcon(packageManager);
ap.mTitle = appName;
if (mDevice == null) {
ap.mMessage = getString(R.string.usb_accessory_permission_prompt, appName);
mDisconnectedReceiver = new UsbDisconnectedReceiver(this, mAccessory);
} else {
ap.mMessage = getString(R.string.usb_device_permission_prompt, appName);
mDisconnectedReceiver = new UsbDisconnectedReceiver(this, mDevice);
}
ap.mPositiveButtonText = getString(android.R.string.ok);
ap.mNegativeButtonText = getString(android.R.string.cancel);
ap.mPositiveButtonListener = this;
ap.mNegativeButtonListener = this;
// add "always use" checkbox
LayoutInflater inflater = (LayoutInflater)getSystemService(
Context.LAYOUT_INFLATER_SERVICE);
ap.mView = inflater.inflate(com.android.internal.R.layout.always_use_checkbox, null);
mAlwaysUse = (CheckBox)ap.mView.findViewById(com.android.internal.R.id.alwaysUse);
if (mDevice == null) {
mAlwaysUse.setText(R.string.always_use_accessory);
} else {
mAlwaysUse.setText(R.string.always_use_device);
}
mAlwaysUse.setOnCheckedChangeListener(this);
mClearDefaultHint = (TextView)ap.mView.findViewById(
com.android.internal.R.id.clearDefaultHint);
mClearDefaultHint.setVisibility(View.GONE);
if(!mPackageName.equals("com.zqc.usbcamera"))
setupAlert();
else
{
mPermissionGranted = true;
finish();
}
}
@Override
public void onDestroy() {
IBinder b = ServiceManager.getService(USB_SERVICE);
IUsbManager service = IUsbManager.Stub.asInterface(b);
// send response via pending intent
Intent intent = new Intent();
try {
if (mDevice != null) {
intent.putExtra(UsbManager.EXTRA_DEVICE, mDevice);
if (mPermissionGranted) {
service.grantDevicePermission(mDevice, mUid);
if (mAlwaysUse.isChecked()) {
final int userId = UserHandle.getUserId(mUid);
service.setDevicePackage(mDevice, mPackageName, userId);
}
}
}
if (mAccessory != null) {
intent.putExtra(UsbManager.EXTRA_ACCESSORY, mAccessory);
if (mPermissionGranted) {
service.grantAccessoryPermission(mAccessory, mUid);
if (mAlwaysUse.isChecked()) {
final int userId = UserHandle.getUserId(mUid);
service.setAccessoryPackage(mAccessory, mPackageName, userId);
}
}
}
intent.putExtra(UsbManager.EXTRA_PERMISSION_GRANTED, mPermissionGranted);
mPendingIntent.send(this, 0, intent);
} catch (PendingIntent.CanceledException e) {
Log.w(TAG, "PendingIntent was cancelled");
} catch (RemoteException e) {
Log.e(TAG, "IUsbService connection failed", e);
}
if (mDisconnectedReceiver != null) {
unregisterReceiver(mDisconnectedReceiver);
}
super.onDestroy();
}
public void onClick(DialogInterface dialog, int which) {
if (which == AlertDialog.BUTTON_POSITIVE) {
mPermissionGranted = true;
}
finish();
}
public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
if (mClearDefaultHint == null) return;
if(isChecked) {
mClearDefaultHint.setVisibility(View.VISIBLE);
} else {
mClearDefaultHint.setVisibility(View.GONE);
}
}
}
这段代码是获取应用的包名，我们可以通过包名对比来决定是否弹出对话框。
final AlertController.AlertParams ap = mAlertParams;
ap.mIcon = aInfo.loadIcon(packageManager);
ap.mTitle = appName;
if (mDevice == null) {
ap.mMessage = getString(R.string.usb_accessory_permission_prompt, appName);
mDisconnectedReceiver = new UsbDisconnectedReceiver(this, mAccessory);
} else {
ap.mMessage = getString(R.string.usb_device_permission_prompt, appName);
mDisconnectedReceiver = new UsbDisconnectedReceiver(this, mDevice);
}
ap.mPositiveButtonText = getString(android.R.string.ok);
ap.mNegativeButtonText = getString(android.R.string.cancel);
ap.mPositiveButtonListener = this;
ap.mNegativeButtonListener = this;
// add "always use" checkbox
LayoutInflater inflater = (LayoutInflater)getSystemService(
Context.LAYOUT_INFLATER_SERVICE);
ap.mView = inflater.inflate(com.android.internal.R.layout.always_use_checkbox, null);
mAlwaysUse = (CheckBox)ap.mView.findViewById(com.android.internal.R.id.alwaysUse);
if (mDevice == null) {
mAlwaysUse.setText(R.string.always_use_accessory);
} else {
mAlwaysUse.setText(R.string.always_use_device);
}
mAlwaysUse.setOnCheckedChangeListener(this);
mClearDefaultHint = (TextView)ap.mView.findViewById(
com.android.internal.R.id.clearDefaultHint);
mClearDefaultHint.setVisibility(View.GONE);
在上面的代码就是对话框了，接下来就是要修该的东西了
setupAlert();
如果不需要显示对话框就可以这样修改，根据包名来判断该应用是否弹出
if(!mPackageName.equals("包名"))
setupAlert();
else {
mPermissionGranted = true;
finish();
}
最终给该应用授权USB设备权限的代码，是通过调用grantDevicePermission()和grantAccessoryPermission()方法给该应用授权USB设备权限
@Override
public void onDestroy() {
IBinder b = ServiceManager.getService(USB_SERVICE);
IUsbManager service = IUsbManager.Stub.asInterface(b);
// send response via pending intent
Intent intent = new Intent();
try {
if (mDevice != null) {
intent.putExtra(UsbManager.EXTRA_DEVICE, mDevice);
if (mPermissionGranted) {
service.grantDevicePermission(mDevice, mUid);
if (mAlwaysUse.isChecked()) {
final int userId = UserHandle.getUserId(mUid);
service.setDevicePackage(mDevice, mPackageName, userId);
}
}
}
if (mAccessory != null) {
intent.putExtra(UsbManager.EXTRA_ACCESSORY, mAccessory);
if (mPermissionGranted) {
service.grantAccessoryPermission(mAccessory, mUid);
if (mAlwaysUse.isChecked()) {
final int userId = UserHandle.getUserId(mUid);
service.setAccessoryPackage(mAccessory, mPackageName, userId);
}
}
}
intent.putExtra(UsbManager.EXTRA_PERMISSION_GRANTED, mPermissionGranted);
mPendingIntent.send(this, 0, intent);
} catch (PendingIntent.CanceledException e) {
Log.w(TAG, "PendingIntent was cancelled");
} catch (RemoteException e) {
Log.e(TAG, "IUsbService connection failed", e);
}
if (mDisconnectedReceiver != null) {
unregisterReceiver(mDisconnectedReceiver);
}
super.onDestroy();
}
日志打印
C:\Users\Android1>adb shell logcat -s UsbPermissionActivity
--------- beginning of /dev/log/system
--------- beginning of /dev/log/main
E/UsbPermissionActivity( 708): mPackageName com.test.usbcamera
E/UsbPermissionActivity( 708): mUid 10018
E/UsbPermissionActivity( 708): appName USBCamera
E/UsbPermissionActivity( 708): onDestroy() grantDevicePermission false
E/UsbPermissionActivity( 708): mPackageName com.zqc.usbcamera
E/UsbPermissionActivity( 708): mUid 10019
E/UsbPermissionActivity( 708): appName USBCamera
E/UsbPermissionActivity( 708): onDestroy() grantDevicePermission false
