公司app要求做一个扭蛋功能，其实就是一个可拖动层叠卡片列表，原理还是由一个自定义Recyclerview和LayoutManager来实现
自定义RecyclerView很简单,只是修改touch事件，防止点击到卡片外还被处理的情况
@Override
public boolean onTouchEvent(MotionEvent e) {
if(e.getY()< UIUtil.dip2px(TutuApplication.getInstance().getContext(),95)||e.getY()>getHeight()-UIUtil.dip2px(TutuApplication.getInstance().getContext(),95)){
if(e.getAction()!=MotionEvent.ACTION_UP && e.getAction()!=MotionEvent.ACTION_MOVE) {
return false;
}
}
return super.onTouchEvent(e);
}
实际的层叠效果还是需要LayoutManager来实现
public class SwipeCardLayoutManager extends RecyclerView.LayoutManager {
Context context;
int TRANS_Y_GAP;
public SwipeCardLayoutManager(Context context){
TRANS_Y_GAP= (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP,15,
context.getResources().getDisplayMetrics());
}
@Override
public RecyclerView.LayoutParams generateDefaultLayoutParams() {
return new RecyclerView.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT,
ViewGroup.LayoutParams.WRAP_CONTENT);
}
@Override
public void onLayoutChildren(RecyclerView.Recycler recycler, RecyclerView.State state) {
super.onLayoutChildren(recycler, state);
//1.如何实现层叠效果--cardView.layout(l,t,r,b)
//2.如何让8个条目中的4个展示在RecylerView里面
//1在布局layout之前，将所有的子View先全部detach掉，然后放到Scrap集合里面缓存。
detachAndScrapAttachedViews(recycler);
//2)只将最上面4个view添加到RecylerView容器里面
int itemCount=getItemCount();//8个
int bottomPosition;
if(itemCount< CardConfig.MAX_SHOW_COUNT){
bottomPosition=0;
}else{
bottomPosition=itemCount-CardConfig.MAX_SHOW_COUNT;
}
for(int i=bottomPosition;i<itemCount;i ){
View view=recycler.getViewForPosition(i);
addView(view);
measureChildWithMargins(view,0,0);
int widthSpace=getWidth()-getDecoratedMeasuredWidth(view);
int heightSpace=getHeight()-getDecoratedMeasuredHeight(view);
//摆放cardView
//层叠效果--Scale TranslationY
//层级的位置关系1/2/3/4
int level=itemCount-i-1;
layoutDecorated(view,
widthSpace/2,
heightSpace/2 StatusBarUtil.getStatusBarHeight(TutuApplication.getInstance().getContext()),
widthSpace/2 getDecoratedMeasuredWidth(view),
heightSpace/2 StatusBarUtil.getStatusBarHeight(TutuApplication.getInstance().getContext()) getDecoratedMeasuredHeight(view));
if(level>0){
if(level<CardConfig.MAX_SHOW_COUNT){
view.setTranslationY(CardConfig.TRANS_V_GAP*level*1.3f);
view.setScaleX(1-CardConfig.SCALE_GAP*level);
view.setScaleY(1-CardConfig.SCALE_GAP*level);
}
}else {
view.setTranslationY(CardConfig.TRANS_V_GAP*(level-1));
view.setScaleX(1-CardConfig.SCALE_GAP*(level-1));
view.setScaleY(1-CardConfig.SCALE_GAP*(level-1));
}
}
}
}

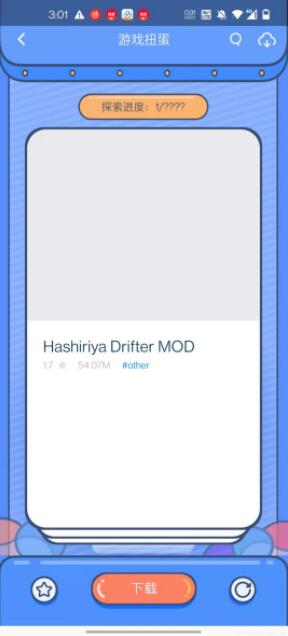

显示出来就是这个样子
对于滑动显示下一张，则使用自定义ItemTouchHelper.simpleCallBack来展示
自定义itemTouchHelper.simpleCallBack
public class SwipeCardCallBack extends ItemTouchHelper.SimpleCallback {
private GameGachaAdapter adapter;
private RecyclerView mRv;
private OnSwipeEndListener listener;
private TextView tv;
private int x = 1;
private Context context;
public void refresh(){
// x = 1;
// tv.setText(context.getResources().getString(R.string.explored) ( x) "/????");
removeCard();
}
public SwipeCardCallBack(GameGachaAdapter adapter, RecyclerView mRv, TextView view, Context context) {
super(0,
ItemTouchHelper.LEFT | ItemTouchHelper.UP |
ItemTouchHelper.RIGHT | ItemTouchHelper.DOWN
);
this.adapter = adapter;
this.mRv = mRv;
this.tv = view;
this.context = context;
}
public void addGameGachaList(List<IMulTypeHelper> mDatas){
adapter.addAdapterData(0,mDatas);
adapter.notifyDataSetChanged();
listener.onSwipe();
}
public SwipeCardCallBack(int dragDirs, int swipeDirs) {
super(dragDirs, swipeDirs);
}
public SwipeCardCallBack() {
/*
* 即我们对哪些方向操作关心。如果我们关心用户向上拖动，可以将
填充swipeDirs参数为LEFT | RIGHT 。0表示从不关心。
* */
super(0,
ItemTouchHelper.LEFT | ItemTouchHelper.UP |
ItemTouchHelper.RIGHT | ItemTouchHelper.DOWN
);
}
@Override
public boolean onMove(RecyclerView recyclerView,
RecyclerView.ViewHolder viewHolder,
RecyclerView.ViewHolder target) {
return false;
}
@Override
public void onSwiped(RecyclerView.ViewHolder viewHolder, int direction) {
//当已经滑动删除了的时候会被回掉--删除数据，循环的效果
removeCard();
}
public void removeCard() {
if(adapter!=null && adapter.getItemCount()>0) {
adapter.removeAdapterData(adapter.getItemCount() - 1);
// mDatas.add(0, remove);
adapter.notifyDataSetChanged();
listener.onSwipe();
if (adapter.getItemCount() == 6) {
listener.onSwipeEnd();
}
tv.setText(context.getResources().getString(R.string.explored) ( x) "/????");
}
}
@Override
public void clearView(@NonNull RecyclerView recyclerView, @NonNull RecyclerView.ViewHolder viewHolder) {
super.clearView(recyclerView, viewHolder);
}
@Override
public void onChildDraw(Canvas c, RecyclerView recyclerView, RecyclerView.ViewHolder viewHolder, float dX, float dY, int actionState, boolean isCurrentlyActive) {
super.onChildDraw(c, recyclerView, viewHolder, dX, dY, actionState, isCurrentlyActive);
//监听话滑动的距离--控制动画的执行程度
if(dY == 0f&&!isCurrentlyActive){
int itemcount = recyclerView.getChildCount();
for (int i = 0; i < itemcount; i ) {
//执行
View view = recyclerView.getChildAt(i);
//几个view层叠的效果，错开的效果--便宜动画 缩放动画
int level = itemcount - i - 1;
view.setRotation(0);
if(dX == 0) {
if(level>0){
if(level<CardConfig.MAX_SHOW_COUNT){
view.setTranslationY(CardConfig.TRANS_V_GAP*level*1.3f);
view.setScaleX(1-CardConfig.SCALE_GAP*level);
view.setScaleY(1-CardConfig.SCALE_GAP*level);
}
}else {
view.setTranslationY(CardConfig.TRANS_V_GAP*(level-1));
view.setScaleX(1-CardConfig.SCALE_GAP*(level-1));
view.setScaleY(1-CardConfig.SCALE_GAP*(level-1));
}
}
}
}else {
//灵界点
double maxDistance = recyclerView.getWidth() * 1f;
double distance = Math.sqrt(dX * dX)*2;
//动画执行的百分比
double fraction = distance / maxDistance;
if (fraction > 1) {
fraction = 1;
}
int itemcount = recyclerView.getChildCount();
for (int i = 0; i < itemcount; i ) {
//执行
View view = recyclerView.getChildAt(i);
//几个view层叠的效果，错开的效果--便宜动画 缩放动画
int level = itemcount - i - 1;
if(level == 0){//最外层动画
if(Math.abs(dX) == 1080f && dY == 0f&&!isCurrentlyActive){
view.setRotation(0);
}else {
if(dX<0){
view.setRotation((float) (360f - (30 * fraction)));
}else {
view.setRotation((float) (30 * fraction));
}
}
} else if(level ==CardConfig.MAX_SHOW_COUNT-1){//最内层动画
view.setTranslationY((float) (CardConfig.TRANS_V_GAP*(level-fraction)*1.3f));
view.setScaleX((float) (1-CardConfig.SCALE_GAP*(level-fraction)));
view.setScaleY((float) (1-CardConfig.SCALE_GAP*(level-fraction)));
}else if (level < CardConfig.MAX_SHOW_COUNT - 1) {
view.setTranslationY((float) ((level - (2*fraction)) * CardConfig.TRANS_V_GAP));
view.setScaleX((float) (1 - CardConfig.SCALE_GAP * level fraction * (CardConfig.SCALE_GAP*2)));
view.setScaleY((float) (1 - CardConfig.SCALE_GAP * level fraction * (CardConfig.SCALE_GAP*2)));
}
}
}
}
@Override
public void onSelectedChanged(@Nullable RecyclerView.ViewHolder viewHolder, int actionState) {
super.onSelectedChanged(viewHolder, actionState);
}
public interface OnSwipeEndListener{
void onSwipeEnd();
void onSwipe();
}
public void setOnSwipeEndListener(OnSwipeEndListener listener){
this.listener = listener;
}
}
在Activity中:
private SwipeCardCallBack callback;
private ItemTouchHelper helper;
...
helper = new ItemTouchHelper(callback);
helper.attachToRecyclerView(swipeFlingAdapterView);
callback.setOnSwipeEndListener(new SwipeCardCallBack.OnSwipeEndListener() {
@Override
public void onSwipeEnd() {
swipeFlingAdapterView.suppressLayout(true);
gameGachaRefresh.setClickable(false);
ToastUtils.createToast().showCenter(TutuGameGachaActivity.this,getString(R.string.wait_moment));
presenter.getGameGacha(PRESENTER_LOAD_STATE_REFRESH);
}
@Override
public void onSwipe() {
if(arrayAdapter.getItemCount()>0) {
swipe();
}
}
});
这样实际效果就差不多可以了。
