这篇做了一个简单的时间轴控件。右侧的数据就是一个简单的字符串。问题还是有的，当右侧的文字长度不一样的时候就会有问题了。现在可以修改一下适配右侧的文字。

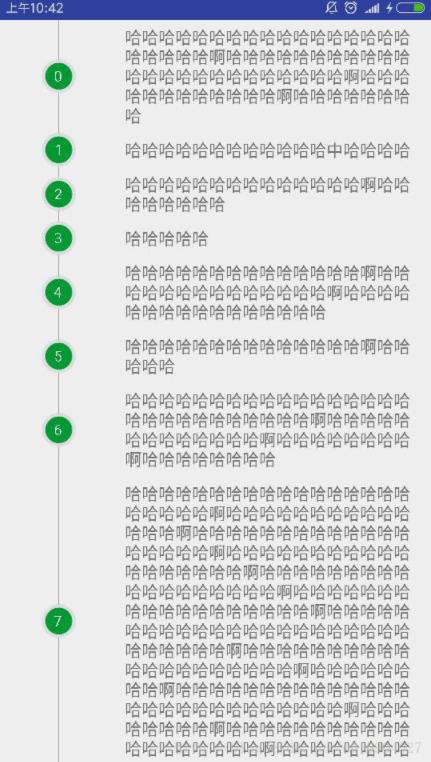

效果如下：
代码：
private Paint bgPaint, linePaint, borderPaint,textPaint;
private Rect bgRect, textRect;
//基本属性
private int mTextSize;
private int mTextColor;
private String mTextTitle="默认文本内容";
private int lineColr = Color.parseColor("#AAAAAA");
private int borderColor = Color.parseColor("#AAAAAA");
private int bgColor = Color.parseColor("#138DDD");
private int mBorderColor=0xFFDDDDDD;
private int mBorderWidth = 10;
private int mLineColor=Color.parseColor("#ff000000");
private int mLineWidth = 2;
private int mLineHeight;
private int mBgColor;
private int mWidth =0;
private int mHeight =300;//整个控件的宽和高
//line绘制
private int lineLocation = -1;//0 上方 1 下方 2 上下两个
private int mRadius = 90;//直径,最终会被宽高限制
//设置line的位置 0 上方 1 下方 2 上下两个
public void setLineLocation(int lineLocation) {
this.lineLocation = lineLocation;
}
//设置纯色的整圆形，包括背景
public void setBgAndBorderColor(int color) {
this.mBgColor = color;
}
public void setmHeight(int mHeight) {
this.mHeight = mHeight;
}
public void setmBorderColor(int mBorderColor) {
this.mBorderColor = mBorderColor;
}
public void setmTextTitle(String mTextTitle) {
this.mTextTitle = mTextTitle;
}
public void setmRadius(int mRadius) {
this.mRadius = mRadius;
}
public void setmLineHeight(int mLineHeight) {
this.mLineHeight = mLineHeight;
}
public TimeLineSingleView(Context context) {
this(context,null);
}
public TimeLineSingleView(Context context, AttributeSet attrs) {
this(context, attrs,0);
}
public TimeLineSingleView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
TypedArray a = context.getTheme().obtainStyledAttributes(attrs, R.styleable.CustomCicleView, defStyleAttr, 0);
int n = a.getIndexCount();
for (int i = 0; i < n; i ) {
int attr = a.getIndex(i);
switch (attr) {
case R.styleable.CustomCicleView_textSize:
// 默认设置为16sp，TypeValue也可以把sp转化为px
mTextSize = a.getDimensionPixelSize(attr, (int) TypedValue.applyDimension(
TypedValue.COMPLEX_UNIT_DIP, 14, getResources().getDisplayMetrics()));
break;
case R.styleable.CustomCicleView_textColor:
mTextColor = a.getColor(attr, Color.BLACK);
break;
case R.styleable.CustomCicleView_textTitle:
mTextTitle = a.getString(attr);
break;
case R.styleable.CustomCicleView_lineWidth:
mLineWidth = a.getDimensionPixelSize(attr, (int) TypedValue.applyDimension(
TypedValue.COMPLEX_UNIT_DIP, 2, getResources().getDisplayMetrics()));
break;
case R.styleable.CustomCicleView_lineColor:
mLineColor = a.getColor(attr, lineColr);
break;
case R.styleable.CustomCicleView_mRadius:
mRadius=a.getDimensionPixelSize(attr, (int) TypedValue.applyDimension(
TypedValue.COMPLEX_UNIT_DIP, 100, getResources().getDisplayMetrics()));
break;
case R.styleable.CustomCicleView_borderWidth:
mBorderWidth = a.getDimensionPixelSize(attr, (int) TypedValue.applyDimension(
TypedValue.COMPLEX_UNIT_DIP, 10, getResources().getDisplayMetrics()));
break;
case R.styleable.CustomCicleView_borderColor:
mBorderColor = a.getColor(attr, borderColor);
break;
case R.styleable.CustomCicleView_bgColor:
mBgColor = a.getColor(attr, bgColor);
break;
}
}
a.recycle();
bgPaint = new Paint();
borderPaint = new Paint();
linePaint = new Paint();
textPaint = new Paint();
textRect = new Rect();
textPaint.setTextSize(mTextSize);
}
//EXACTLY :在准确的数值和Match_parent的状态是这个值 列表中，wrap_content的状态下必须计算一个合适的值
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int w = 0;
int h =0;
int widthMode=MeasureSpec.getMode(widthMeasureSpec);
int heightMode=MeasureSpec.getMode(heightMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
if(widthMode==MeasureSpec.EXACTLY){
w=widthSize;
}else{
w=Math.max(mHeight,mRadius getPaddingRight() getPaddingLeft());
}
if(heightMode==MeasureSpec.EXACTLY){
h=heightSize;
}else{
h=Math.max(mHeight,mRadius getPaddingTop() getPaddingBottom());
}
setMeasuredDimension(w,h);
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
int centreX = getWidth()/ 2; // 获取圆心的x坐标
int centreY=getHeight()/2;
//半径比较
mBorderWidth =(mBorderWidth>=mRadius/10)?(mRadius/10):mBorderWidth;//半径的1/5
int radius = mRadius/2 - mBorderWidth / 2;// 半径
if(mLineHeight<=0){
mLineHeight=Math.abs(getHeight()/2-radius);//这个地方要判断设置正负
}
//绘制圆
bgPaint.setAntiAlias(true); // 消除锯齿
bgPaint.setColor(mBgColor);
bgPaint.setStyle(Paint.Style.FILL); // 设置实心
canvas.drawCircle(centreX, centreY, radius, bgPaint);
//绘制圆环
borderPaint.setStrokeWidth(mBorderWidth); // 设置圆环的宽度
borderPaint.setAntiAlias(true); // 消除锯齿
if (mBorderColor != 0) {
borderPaint.setColor(mBorderColor);
} else {
borderPaint.setColor(borderColor);
}
borderPaint.setStyle(Paint.Style.STROKE); // 设置实心
canvas.drawCircle(centreX,centreY, radius - mBorderWidth / 2 mLineWidth/2, borderPaint);
//绘制文本
textPaint.setTextSize(mTextSize);
textPaint.setColor(mTextColor);
textPaint.getTextBounds(mTextTitle, 0, mTextTitle.length(), textRect);
canvas.drawText(mTextTitle, centreX -textRect.width()/2-mBorderWidth/2, centreY textRect.height() / 2, textPaint);
//绘制线条
drawLineAll(canvas,centreX,centreY,radius);
}
//上下都绘制不用
//1 上方 0 下方 2 上下两个
private void drawLineAll(Canvas canvas, float centreX, float centreY,int radius) {
if(lineLocation==-1){
linePaint.setColor(borderColor);
linePaint.setStrokeWidth(mLineWidth);
canvas.drawLine(centreX, 0, centreX, centreY-radius, linePaint);//上方的
canvas.drawLine(centreX, centreY radius, centreX, getHeight(), linePaint);//下方的
}else{
//这个可以绘制不同的line
linePaint.setColor(lineColr);
linePaint.setStrokeWidth(mLineWidth);
if (lineLocation == 0) {
canvas.drawLine(centreX, centreY radius, centreX, getHeight(), linePaint);
} else if (lineLocation == 1) {
canvas.drawLine(centreX, 0, centreX, centreY -radius , linePaint);
} else if (lineLocation == 2) {
canvas.drawLine(centreX, centreY radius, centreX, getHeight(), linePaint);
canvas.drawLine(centreX, 0, centreX, centreY -radius , linePaint);
}
}
}其他代码和之前文章一样就不贴了，但是还有一个问题就是，这个控件是放在一个列表里面的，你在适配器中使用的时候布局要是wrap的状态下要计算一个合适的高度，比如listView 的Item的高度。这里我没有实现，还是在Match和固定高度中，后期更改。
