产生背景

为了解决异步线程产生的回调地狱

//传统回调方式
api.login(phone,psd).enquene(new Callback<User>(){
 public void onSuccess(User user){
 api.submitAddress(address).enquene(new Callback<Result>(){
 public void onSuccess(Result result){
 ...
 }
 });
 }
});
//使用协程后
val user=api.login(phone,psd)
api.submitAddress(address)
...

协程是什么

本质上,协程是轻量级的线程。

协程关键名词

val job = GlobalScope.launch {
 delay(1000)
 println("World World!")
}

CoroutineScope(作用范围)

控制协程代码块执行的线程,生命周期等,包括GlobeScope、lifecycleScope、viewModelScope以及其他自定义的CoroutineScope

GlobeScope:全局范围,不会自动结束执行

lifecycleScope:生命周期范围,用于activity等有生命周期的组件,在DESTROYED的时候会自动结束,需额外引入

viewModelScope:viewModel范围,用于ViewModel中,在ViewModel被回收时会自动结束,需额外引入

Job(作业)

协程的计量单位,相当于一次工作任务,launch方法默认返回一个新的Job

suspend(挂起)

作用于方法上,代表该方法是耗时任务,例如上面的delay方法

public suspend fun delay(timeMillis: Long) {
 ...
}

协程的引入

主框架($coroutines_version替换为最新版本,如1.3.9,下同)

implementation "org.jetbrains.kotlinx:kotlinx-coroutines-core:$coroutines_version"

lifecycleScope(可选,版本2.2.0)

implementation 'androidx.activity:activity-ktx:$lifecycle_scope_version'

viewModelScope(可选,版本2.3.0-beta01)

implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:$coroutines_viewmodel_version"

简单使用

先举个简单例子

lifecycleScope.launch {
 delay(2000)
 tvTest.text="Test"
}

上面这个例子实现的功能是等待2秒,然后修改id为tvTest的TextView控件的text值为Test

自定义延迟返回方法

在kotlin里面,对于需要延迟才能返回结果的方法,需要用suspend标明

lifecycleScope.launch {
 val text=getText()
 tvTest.text = text
}
suspend fun getText():String{
 delay(2000)
 return "getText"
}

如果在其他线程,需要使用Continuation进行线程切换,可使用suspendCancellableCoroutine 或 suspendCoroutine包裹(前者可取消,相当于后者的扩展),成功调用it.resume(),失败调用it.resumeWithException(Exception()),抛出异常

suspend fun getTextInOtherThread() = suspendCancellableCoroutine<String> {
 thread {
 Thread.sleep(2000)
 it.resume("getText")
 }
}

异常捕获

协程里面的失败都可以通过异常捕获,来统一处理特殊情况

lifecycleScope.launch {
 try {
 val text=getText()
 tvTest.text = text
 } catch (e:Exception){
 e.printStackTrace()
 }
}

取消功能

下面执行了两个job,第一个是原始的,第二个是在1秒后取消第一个job,这会导致tvText的文本并不会改变

val job = lifecycleScope.launch {
 try {
 val text=getText()
 tvTest.text = text
 } catch (e:Exception){
 e.printStackTrace()
 }
}
lifecycleScope.launch {
 delay(1000)
 job.cancel()
}

设置超时

这个相当于系统封装了自动取消功能,对应函数withTimeout

lifecycleScope.launch {
 try {
 withTimeout(1000) {
  val text = getText()
  tvTest.text = text
 }
 } catch (e:Exception){
 e.printStackTrace()
 }
}

带返回值的Job

与launch类似的还有一个async方法,它会返回一个Deferred对象,属于Job的扩展类,Deferred可以获取返回的结果,具体使用如下

lifecycleScope.launch {
 val one= async {
 delay(1000)
 return@async 1
 }
 val two= async {
 delay(2000)
 return@async 2
 }
 Log.i("scope test",(one.await() two.await()).toString())
}

高级进阶

自定义CoroutineScope

先看CoroutineScope源码

public interface CoroutineScope {
 public val coroutineContext: CoroutineContext
}

CoroutineScope中主要包含一个coroutineContext对象,我们要自定义只需实现coroutineContext的get方法

class TestScope() : CoroutineScope {
 override val coroutineContext: CoroutineContext
  get() = TODO("Not yet implemented")
}

要创建coroutineContext,得要先知道CoroutineContext是什么,我们再看CoroutineContext源码

/**
 * Persistent context for the coroutine. It is an indexed set of [Element] instances.
 * An indexed set is a mix between a set and a map.
 * Every element in this set has a unique [Key].
 */
public interface CoroutineContext {
 public operator fun <E : Element> get(key: Key<E>): E?
 public fun <R> fold(initial: R, operation: (R, Element) -> R): R
 public operator fun plus(context: CoroutineContext): CoroutineContext =
  ...
 public fun minusKey(key: Key<*>): CoroutineContext

 public interface Key<E : Element>
 public interface Element : CoroutineContext {
  ...
 }
}

通过注释说明,我们知道它本质就是一个包含Element的集合,只是不像set和map集合一样,它自己实现了获取(get),折叠(fold,添加和替换的组合),相减(minusKey,移除),对象组合(plus,如val coroutineContext=coroutineContext1 coroutineContext2)
它的主要内容是Element,而Element的实现有

  • Job 任务
  • ContinuationInterceptor 拦截器
  • AbstractCoroutineContextElement
  • CoroutineExceptionHandler
  • ThreadContextElement
  • DownstreamExceptionElement
  • ....

可以看到很多地方都有实现Element,它主要目的是限制范围以及异常的处理。这里我们先了解两个重要的Element,一个是Job,一个是CoroutineDispatcher
Job

  • Job:子Job取消,会导致父job和其他子job被取消;父job取消,所有子job被取消
  • SupervisorJob:父job取消,所有子job被取消

CoroutineDispatcher

  • Dispatchers.Main:主线程执行
  • Dispatchers.IO:IO线程执行

我们模拟一个类似lifecycleScope的自定义TestScope

class TestScope() : CoroutineScope {
 override val coroutineContext: CoroutineContext
  get() = SupervisorJob()  Dispatchers.Main
}

这里我们定义了一个总流程线SupervisorJob()以及具体执行环境Dispatchers.Main(Android主线程),假如我们想替换掉activity的lifecycleScope,就需要在activity中创建实例

val testScope=TestScope()

然后在activity销毁的时候取消掉所有job

override fun onDestroy() {
 testScope.cancel()
 super.onDestroy()
}

其他使用方式同lifecycleScope,如

testScope.launch{
 val text = getText()
 tvTest.text = text
}

深入理解Job

CoroutineScope中包含一个主Job,之后调用的launch或其他方法创建的job都属于CoroutineScope的子Job,每个job都有属于自己的状态,其中包括isActive、isCompleted、isCancelled,以及一些基础操作start()、cancel()、join(),具体的转换流程如下

我们先从创建job开始,当调用launch的时候默认有三个参数CoroutineContext、CoroutineStart以及代码块参数。

  • context:CoroutineContext的对象,默认为CoroutineStart.DEFAULT,会与CoroutineScope的context进行折叠
  • start:CoroutineStart的对象,默认为CoroutineStart.DEFAULT,代表立即执行,同时还有CoroutineStart.LAZY,代表非立即执行,必须调用job的start()才会开始执行
val job2= lifecycleScope.launch(start = CoroutineStart.LAZY) {
 delay(2000)
 Log.i("scope test","lazy")
}
job2.start()

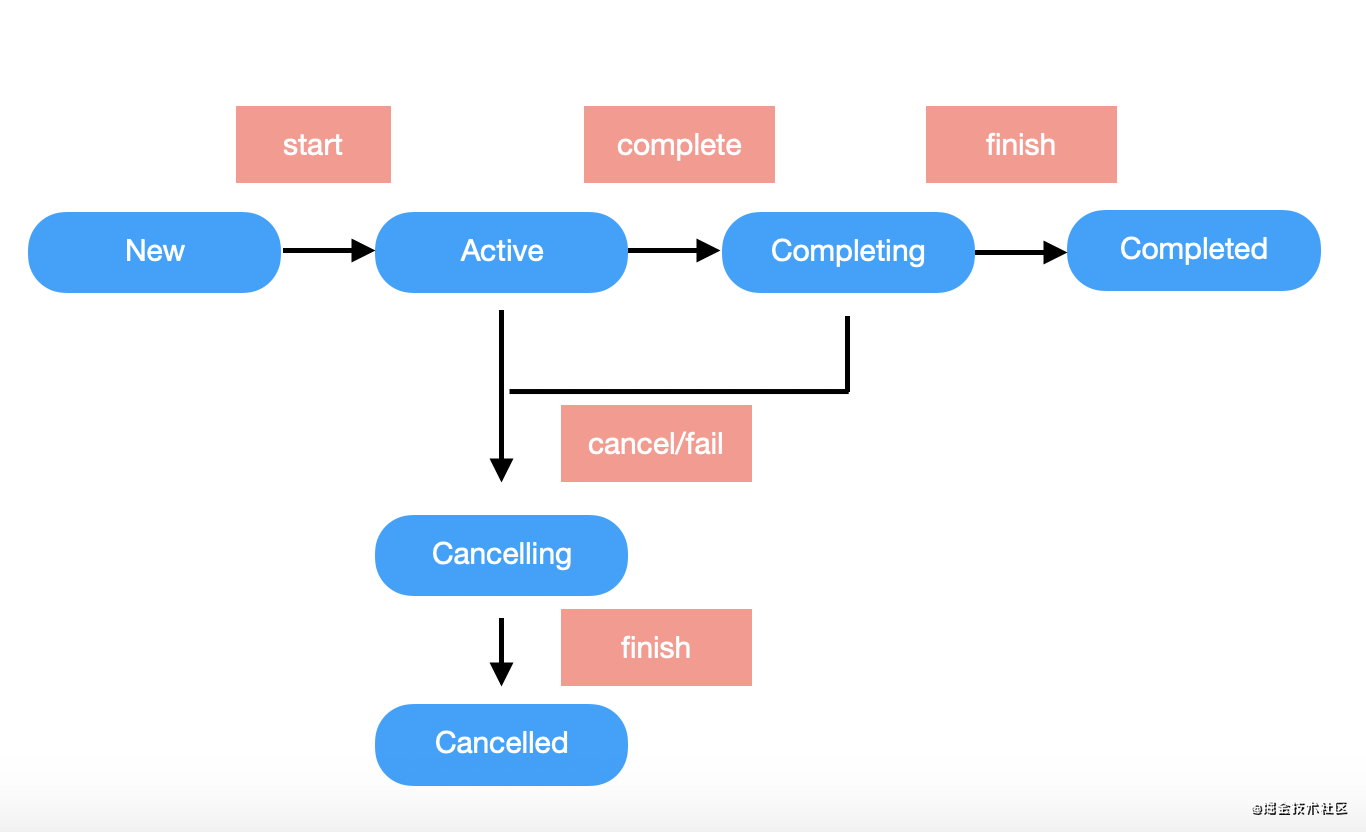

当使用这种模式创建时默认就是new状态,此时isActive,isCompleted,isCancelled都为false,当调用start后,转换为active状态,其中只有isActive为true,如果它的任务完成了则会进入Completing状态,此时为等待子job完成,这种状态下还是只有isActive为true,如果所有子job也完成了则会进入Completed状态,只有isCompleted为true。如果在active或Completing状态下出现取消或异常,则会进入Cancelling状态,如果需要取消父job和其他子job则会等待它们取消完成,此时只有isCancelled为true,取消完成后最终进入Cancelled状态,isCancelled和isCompleted都为true

State isActive isCompleted isCancelled
New FALSE FALSE FALSE
Active TRUE FALSE FALSE
Completing TRUE FALSE FALSE
Cancelling FALSE FALSE TRUE
Cancelled FALSE TRUE TRUE
Completed FALSE TRUE FALSE

不同job交互需使用join()与cancelAndJoin()

  • join():将当前job添加到其他协程任务里面
  • cancelAndJoin():取消操作,只是添加进去后再取消
val job1= GlobleScope.launch(start = CoroutineStart.LAZY) {
 delay(2000)
 Log.i("scope test","job1")
}
lifecycleScope.launch {
 job1.join()
 delay(2000)
 Log.i("scope test","job2")
}

深入理解suspend

suspend作为kotlin新增的方法修饰词,最终实现还是java,我们先看它们的差异性

suspend fun test1(){}
fun test2(){}

对应java代码

public final Object test1(@NotNull Continuation $completion) {
 return Unit.INSTANCE;
}
public final void test2() {
}

对应字节码

public final test1(Lkotlin/coroutines/Continuation;)Ljava/lang/Object;
 ...
 L0
 LINENUMBER 6 L0
 GETSTATIC kotlin/Unit.INSTANCE : Lkotlin/Unit;
 ARETURN
 L1
 LOCALVARIABLE this Lcom/lieni/android_c/ui/test/TestActivity; L0 L1 0
 LOCALVARIABLE $completion Lkotlin/coroutines/Continuation; L0 L1 1
 MAXSTACK = 1
 MAXLOCALS = 2

public final test2()V
 L0
 LINENUMBER 9 L0
 RETURN
 L1
 LOCALVARIABLE this Lcom/lieni/android_c/ui/test/TestActivity; L0 L1 0
 MAXSTACK = 0
 MAXLOCALS = 1

可以看到,加了suspend的方法其实和普通方法一样,只是传入时多了个Continuation对象,并返回了Unit.INSTANCE对象

public interface Continuation<in T> {
  public val context: CoroutineContext
  public fun resumeWith(result: Result<T>)
}

而Continuation的具体实现在BaseContinuationImpl中

internal abstract class BaseContinuationImpl(...) : Continuation<Any?>, CoroutineStackFrame, Serializable {
  public final override fun resumeWith(result: Result<Any?>) {
    ...
    while (true) {
      ...
      with(current) {
       	val outcome = invokeSuspend(param)
        ...
        releaseIntercepted()
        if (completion is BaseContinuationImpl) {
          ...
        } else {
          ...
          return
        }
      }
    }
  }
  ...
}

当我们调用resumeWith时,它会一直执行一个循环,调用invokeSuspend(param)和releaseIntercepted() ,直到最顶层completion执行完成后返回,并且释放协程的interceptor

最终的释放在ContinuationImpl中实现

internal abstract class ContinuationImpl(...) : BaseContinuationImpl(completion) {
  ...
  protected override fun releaseIntercepted() {
    val intercepted = intercepted
    if (intercepted != null && intercepted !== this) {
      context[ContinuationInterceptor]!!.releaseInterceptedContinuation(intercepted)
    }
    this.intercepted = CompletedContinuation
  }
}

通过这里知释放最终通过CoroutineContext中为ContinuationInterceptor的Element来实现
而暂停也是同理,继续看suspendCoroutine

public suspend inline fun <T> suspendCoroutine(crossinline block: (Continuation<T>) -> Unit): T =
  suspendCoroutineUninterceptedOrReturn { c: Continuation<T> ->
    val safe = SafeContinuation(c.intercepted())
    ...
  }

默认会调用Continuation的intercepted()方法

internal abstract class ContinuationImpl(...) : BaseContinuationImpl(completion) {
  ...
  public fun intercepted(): Continuation<Any?> =intercepted
      ?: (context[ContinuationInterceptor]?.interceptContinuation(this) ?: this)
        .also { intercepted = it }
}

可以看到暂停最终也是通过CoroutineContext中为ContinuationInterceptor的Element来实现

流程总结(线程切换)

  • 创建新的Continuation
  • 调用CoroutineScope中的context的ContinuationInterceptor的interceptContinuation方法暂停父任务
  • 执行子任务(如果指定了线程,则在新线程执行,并传入Continuation对象)
  • 执行完毕后用户调用Continuation的resume或者resumeWith返回结果
  • 调用CoroutineScope中的context的ContinuationInterceptor的releaseInterceptedContinuation方法恢复父任务

阻塞与非阻塞

CoroutineScope默认是不会阻塞当前线程的,如果需要阻塞可以使用runBlocking,如果在主线程执行下面代码,会出现2s白屏

runBlocking {
  delay(2000)
  Log.i("scope test","runBlocking is completed")
}

阻塞原理:执行runBlocking默认会创建BlockingCoroutine,而BlockingCoroutine中会一直执行一个循环,直到当前Job为isCompleted状态才会跳出循环

public fun <T> runBlocking(...): T {
  ...
  val coroutine = BlockingCoroutine<T>(newContext, currentThread, eventLoop)
  coroutine.start(CoroutineStart.DEFAULT, coroutine, block)
  return coroutine.joinBlocking()
}
private class BlockingCoroutine<T>(...) : AbstractCoroutine<T>(parentContext, true) {
  ...
  fun joinBlocking(): T {
   ...
   while (true) {
    ...
    if (isCompleted) break
    ...
   }
   ...
  }
}

总结

到此这篇关于一文彻底搞懂Kotlin中协程的文章就介绍到这了,更多相关Kotlin协程内容请搜索Devmax以前的文章或继续浏览下面的相关文章希望大家以后多多支持Devmax!
