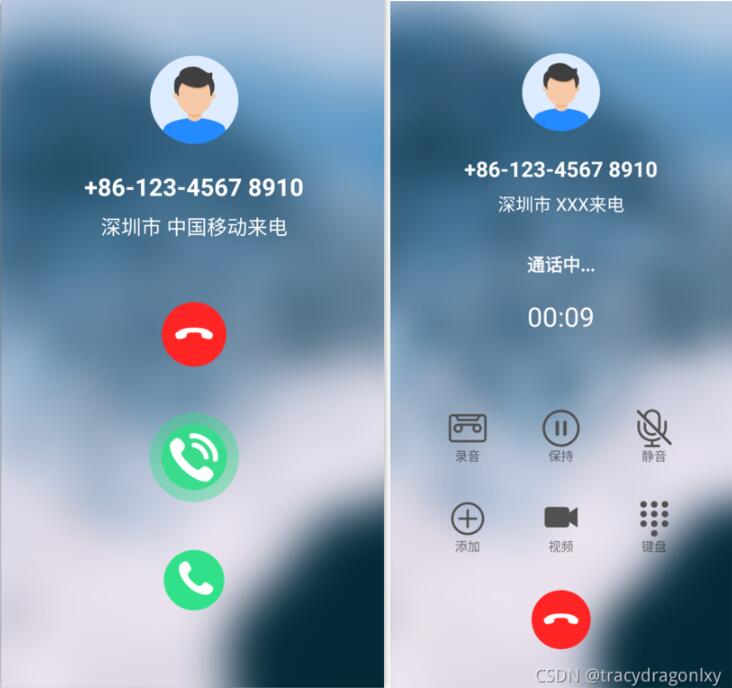

Android仿通话来电界面效果

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">

    <corners android:radius="65dp"/>
    <solid android:color="#31DE87"/>

</shape>

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:keepScreenOn="true"
    tools:context=".MyCall.MyCallActivity">

    <ImageView
        android:id="@ id/iv_bg"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:scaleType="centerCrop"
        android:src="@mipmap/img1"/>

    <ImageView
        android:id="@ id/iv_head"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="60dp"
        android:src="@mipmap/header"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintEnd_toEndOf="parent"/>

    <TextView
        android:id="@ id/tv_phone"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:text=" 86-123-4567 8910"
        android:textSize="24sp"
        android:textStyle="bold"
        android:textColor="#fff"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintTop_toBottomOf="@id/iv_head"/>

    <TextView
        android:id="@ id/tv_from"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:textColor="#fff"
        android:textSize="20sp"
        android:text="深圳市 中国移动来电"
        app:layout_constraintTop_toBottomOf="@id/tv_phone"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintEnd_toEndOf="parent"/>

    <ImageView
        android:id="@ id/iv_hang_up"
        android:layout_width="64dp"
        android:layout_height="64dp"
        android:src="@mipmap/hang_up"
        android:layout_marginBottom="60dp"
        app:layout_constraintBottom_toTopOf="@id/iv_wave1"
        app:layout_constraintStart_toStartOf="@id/iv_wave1"
        app:layout_constraintEnd_toEndOf="@id/iv_wave1" />

    <ImageView
    android:id="@ id/iv_wave1"
    android:layout_width="60dp"
    android:layout_height="60dp"
    android:layout_marginBottom="200dp"
    android:background="@drawable/shape_circle"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintEnd_toEndOf="parent"/>

    <ImageView
        android:id="@ id/iv_wave2"
        android:layout_width="60dp"
        android:layout_height="60dp"
        android:background="@drawable/shape_circle"
        app:layout_constraintTop_toTopOf="@id/iv_wave1"
        app:layout_constraintBottom_toBottomOf="@id/iv_wave1"
        app:layout_constraintStart_toStartOf="@id/iv_wave1"
        app:layout_constraintEnd_toEndOf="@id/iv_wave1"/>

    <ImageView
        android:id="@ id/iv_call"
        android:layout_width="48dp"
        android:layout_height="48dp"
        android:src="@mipmap/call_in"
        app:layout_constraintTop_toTopOf="@id/iv_wave1"
        app:layout_constraintBottom_toBottomOf="@id/iv_wave1"
        app:layout_constraintStart_toStartOf="@id/iv_wave1"
        app:layout_constraintEnd_toEndOf="@id/iv_wave1"/>

    <ImageView
        android:id="@ id/iv_answer"
        android:layout_width="64dp"
        android:layout_height="64dp"
        android:src="@mipmap/answer"
        android:layout_marginTop="60dp"
        app:layout_constraintStart_toStartOf="@id/iv_wave1"
        app:layout_constraintEnd_toEndOf="@id/iv_wave1"
        app:layout_constraintTop_toBottomOf="@id/iv_wave1"/>

</androidx.constraintlayout.widget.ConstraintLayout>

public class MyCallActivity extends AppCompatActivity {

    ImageView iv1, iv2;

    private MediaPlayer mMediaPlayer;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_my_call);

        ImageView ivBg = findViewById(R.id.iv_bg);
        Glide.with(this)
                .load(R.mipmap.img2)
                .apply(RequestOptions.bitmapTransform(new BlurTransformation(25, 6)))
                .into(ivBg);

        iv1 = findViewById(R.id.iv_wave1);
        iv2 = findViewById(R.id.iv_wave2);

        mMediaPlayer = MediaPlayer.create(this,
                        RingtoneManager.getActualDefaultRingtoneUri(this, RingtoneManager.TYPE_RINGTONE));
        mMediaPlayer.setLooping(true);
        playRingTone();

        setAnim1();

        setAnim2();
    }

    @Override
    protected void onPause() {
        super.onPause();
        iv1.clearAnimation();
        iv2.clearAnimation();
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        stopRingTone();
    }

    public void playRingTone(){
        if (mMediaPlayer.isPlaying()) {
            return;
        }
        mMediaPlayer.start();
    }

    public void stopRingTone() {
        if (mMediaPlayer.isPlaying()) {
            mMediaPlayer.stop();
            mMediaPlayer.release();
        }
    }

    private void setAnim1() {
        AnimationSet as = new AnimationSet(true);
        //缩放动画，以中心从原始放大到1.4倍
        ScaleAnimation scaleAnimation = new ScaleAnimation(1.0f, 1.4f, 1.0f, 1.4f,
                ScaleAnimation.RELATIVE_TO_SELF, 0.5f,
                ScaleAnimation.RELATIVE_TO_SELF, 0.5f);
        //渐变动画
        AlphaAnimation alphaAnimation = new AlphaAnimation(1.0f, 0.5f);
        scaleAnimation.setDuration(800);
        scaleAnimation.setRepeatCount(Animation.INFINITE);
        alphaAnimation.setRepeatCount(Animation.INFINITE);
        as.setDuration(800);
        as.addAnimation(scaleAnimation);
        as.addAnimation(alphaAnimation);
        iv1.startAnimation(as);
    }

    private void setAnim2() {
        AnimationSet as = new AnimationSet(true);
        //缩放动画，以中心从1.4倍放大到1.8倍
        ScaleAnimation scaleAnimation = new ScaleAnimation(1.4f, 1.8f, 1.4f, 1.8f,
                ScaleAnimation.RELATIVE_TO_SELF, 0.5f,
                ScaleAnimation.RELATIVE_TO_SELF, 0.5f);
        //渐变动画
        AlphaAnimation alphaAnimation = new AlphaAnimation(0.5f, 0.1f);
        scaleAnimation.setDuration(800);
        scaleAnimation.setRepeatCount(Animation.INFINITE);
        alphaAnimation.setRepeatCount(Animation.INFINITE);
        as.setDuration(800);
        as.addAnimation(scaleAnimation);
        as.addAnimation(alphaAnimation);
        iv2.startAnimation(as);
    }
}
