最近需要做个平板的项目，然后需要直接横屏，有2种实现方式。
1, 随着屏幕旋转，布局自动调整。做横竖屏适配
2，强制屏幕横屏，不随着屏幕去调整
第一种方式这里就不做说明了。代码做适配就可以。 下面说一下第二种实现方式
Flutter 自带方式
flutter 为我们提供了方法来控制系统的横竖屏显示
SystemChrome.setPreferredOrientations([
DeviceOrientation.landscapeLeft,
DeviceOrientation.landscapeRight,
DeviceOrientation.portraitUp,
DeviceOrientation.portraitDown
]).then((_) {
});
包含的方向类型。 ！！！！但是但是但是这个方法只适用于android在iOS上没有效果，上网查资料有大神封装的 flutter插件orientation ,flutter插件auto_orientation 在iOS上都起不到效果，所以打算自己写一个原生文件与flutter进行通讯，实现屏幕旋转。也是笔者在查询资料之后做的一个整合和解释说明
iOS端实现屏幕旋转
创建iOS原生文件

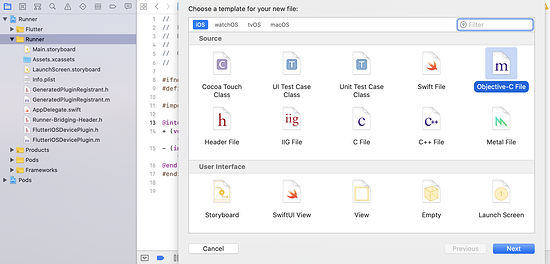

创建iOS原生文件来实现交互，首先要创建个原生文件。命名为FlutterIOSDevicePlugin。 创建文件
创建一个命名为FlutterIOSDevicePlugin.h 和命名为FlutterIOSDevicePlugin.m文件，说明一下： FlutterIOSDevicePlugin.h文件选择图片里面的header File模块创建即可。
创建之后，一起看一下FlutterIOSDevicePlugin.h里面的代码
#ifndef FlutterIOSDevicePlugin_h #define FlutterIOSDevicePlugin_h #import <Flutter/Flutter.h> @interface FlutterIOSDevicePlugin : NSObject<FlutterPlugin> (void)registerWithRegistrar:(NSObject<FlutterPluginRegistrar>*)registrar flutterViewController:(FlutterViewController*) controller; - (instancetype)newInstance:(NSObject<FlutterPluginRegistrar>*)registrar flutterViewController:(FlutterViewController*) controller; @end #endif /* FlutterIOSDevicePlugin_h */
这个不需要过多说明了看一下FlutterIOSDevicePlugin.m的代码
#import <Foundation/Foundation.h>
#import "FlutterIOSDevicePlugin.h"
@interface FlutterIOSDevicePlugin () {
NSObject<FlutterPluginRegistrar> *_registrar;
FlutterViewController *_controller;
}
@end
static NSString* const CHANNEL_NAME = @"flutter_ios_device";
static NSString* const METHOD_CHANGE_ORIENTATION = @"change_screen_orientation";
static NSString* const ORIENTATION_PORTRAIT_UP = @"portraitUp";
static NSString* const ORIENTATION_PORTRAIT_DOWN = @"portraitDown";
static NSString* const ORIENTATION_LANDSCAPE_LEFT = @"landscapeLeft";
static NSString* const ORIENTATION_LANDSCAPE_RIGHT = @"landscapeRight";
@implementation FlutterIOSDevicePlugin
(void)registerWithRegistrar:(NSObject<FlutterPluginRegistrar>*)registrar {
FlutterMethodChannel* channel = [FlutterMethodChannel
methodChannelWithName:CHANNEL_NAME
binaryMessenger:[registrar messenger]];
FlutterIOSDevicePlugin* instance = [[FlutterIOSDevicePlugin alloc] newInstance:registrar flutterViewController:nil];
[registrar addMethodCallDelegate:instance channel:channel];
}
(void)registerWithRegistrar:(NSObject<FlutterPluginRegistrar>*)registrar flutterViewController:(FlutterViewController*) controller {
FlutterMethodChannel* channel = [FlutterMethodChannel
methodChannelWithName:CHANNEL_NAME
binaryMessenger:[registrar messenger]];
FlutterIOSDevicePlugin* instance = [[FlutterIOSDevicePlugin alloc] newInstance:registrar flutterViewController:controller];
[registrar addMethodCallDelegate:instance channel:channel];
}
- (instancetype)newInstance:(NSObject<FlutterPluginRegistrar>*)registrar flutterViewController:(FlutterViewController*) controller{
_registrar = registrar;
_controller = controller;
return self;
}
- (void)handleMethodCall:(FlutterMethodCall*)call result:(FlutterResult)result {
if ([METHOD_CHANGE_ORIENTATION isEqualToString:call.method]) {
NSArray *arguments = call.arguments;
NSString *orientation = arguments[0];
NSNumber *index = [NSNumber numberWithInt: [call.arguments[0] intValue]];
NSInteger iOSOrientation;
if ([orientation isEqualToString:ORIENTATION_LANDSCAPE_LEFT]){
iOSOrientation = UIDeviceOrientationLandscapeLeft;
}else if([orientation isEqualToString:ORIENTATION_LANDSCAPE_RIGHT]){
iOSOrientation = UIDeviceOrientationLandscapeRight;
}else if ([orientation isEqualToString:ORIENTATION_PORTRAIT_DOWN]){
iOSOrientation = UIDeviceOrientationPortraitUpsideDown;
}else{
iOSOrientation = UIDeviceOrientationPortrait;
}
[[UIDevice currentDevice] setValue:@(iOSOrientation) forKey:@"orientation"];
// [[NSNotificationCenter defaultCenter] postNotificationName:@"FlutterIOSDevicePlugin" object:nil userInfo:@{@"orientationMask": index}];
// [UIViewController attemptRotationToDeviceOrientation];
result(nil);
} else {
result(FlutterMethodNotImplemented);
}
}
@end
以上是全部的代码，其中尝试了用通知的方式去做屏幕旋转，后来发现其实没有那么麻烦，直接采用的是
[[UIDevice currentDevice] setValue:@(iOSOrientation) forKey:@"orientation"];
方式做的。其中遇到的问题：
问题1:iphone手机上可以正常旋转，ipad上不行

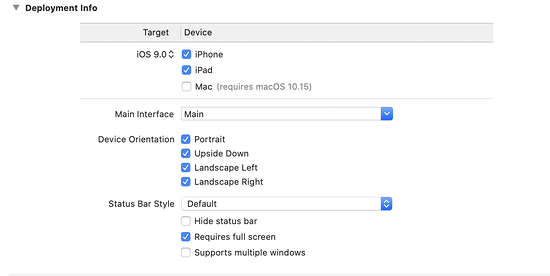

这个问题主要原因是info。plist文件里面的iphone和ipad不一致，且勾选Requires full screen 即可
回到正轨哈
注册原生插件文件
iOS 工程种有个GeneratedPluginRegistrant.m文件，直接注册就可以了。 如果你项目引入了其他第三方插件，也是统一在这个地方注册的
#import "GeneratedPluginRegistrant.h"
#if __has_include(<auto_orientation/AutoOrientationPlugin.h>)
#import <auto_orientation/AutoOrientationPlugin.h>
#else
@import auto_orientation;
#endif
#if __has_include(<orientation/OrientationPlugin.h>)
#import <orientation/OrientationPlugin.h>
#else
@import orientation;
#endif
#import "FlutterIOSDevicePlugin.h"
@implementation GeneratedPluginRegistrant
(void)registerWithRegistry:(NSObject<FlutterPluginRegistry>*)registry {
[AutoOrientationPlugin registerWithRegistrar:[registry registrarForPlugin:@"AutoOrientationPlugin"]];
[OrientationPlugin registerWithRegistrar:[registry registrarForPlugin:@"OrientationPlugin"]];
// [registry registrarForPlugin:@"FlutterIOSDevicePlugin"];
[FlutterIOSDevicePlugin registerWithRegistrar: [registry registrarForPlugin:@"FlutterIOSDevicePlugin"]];
}
@end
代码中的这个片段是自己写的插件注册的方法，其他的AutoOrientationPlugin，OrientationPlugin是引用第三方插件自动生成的代码。
[FlutterIOSDevicePlugin registerWithRegistrar: [registry registrarForPlugin:@"FlutterIOSDevicePlugin"]];
AppDelegate文件中的设置
import UIKit
import Flutter
@UIApplicationMain
@objc class AppDelegate: FlutterAppDelegate {
var orientationMask: UIInterfaceOrientationMask = .all;
override func application(
_ application: UIApplication,
didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?
) -> Bool {
NotificationCenter.default.addObserver(self, selector: #selector(changeLandscape(center:)), name:NSNotification.Name(rawValue: "FlutterIOSDevicePlugin"), object: nil)
GeneratedPluginRegistrant.register(with: self);
return super.application(application, didFinishLaunchingWithOptions: launchOptions)
}
override func application(_ application: UIApplication, supportedInterfaceOrientationsFor window: UIWindow?) -> UIInterfaceOrientationMask {
return orientationMask;
}
@objc func changeLandscape(center: Notification){
let index: NSNumber = (center.userInfo?["orientationMask"] ?? 5) as! NSNumber
var mask : UIInterfaceOrientationMask = .all
switch index {
case 0:
mask = .portrait
break
case 1:
mask = .landscapeLeft
break
case 2:
mask = .landscapeRight
break
case 3:
mask = .portraitUpsideDown
break
case 4:
mask = .landscape
break
case 5:
mask = .all
break
case 6:
mask = .allButUpsideDown
break
default:
mask = .all
break
}
orientationMask = mask;
_ = application(UIApplication.shared, supportedInterfaceOrientationsFor: UIApplication.shared.keyWindow)
}
}
其中changeLandscape方法是控制监听的事件的方法，目前没什么用。 主要代码是这一段，这个是在发出屏幕旋转的时候回调的方法，这里面设置的是全部的方向都可以。
override func application(_ application: UIApplication, supportedInterfaceOrientationsFor window: UIWindow?) -> UIInterfaceOrientationMask {
return orientationMask;
}
问题2:程序不走该方法
具体原因是因为info.plist文件问题。参考上面设置就没问题
flutter 原生代码使用
这个地方是针对于iOS平台去做的区别。
MethodChannel _channel = const MethodChannel('flutter_ios_device');
@override
void initState() {
SystemChrome.setPreferredOrientations([
DeviceOrientation.landscapeLeft,
DeviceOrientation.landscapeRight,
DeviceOrientation.portraitUp,
DeviceOrientation.portraitDown
]).then((_) {
if (Platform.isIOS) {
this.changeScreenOrientation(DeviceOrientation.landscapeLeft);
}
});
super.initState();
}
Future<void> changeScreenOrientation(DeviceOrientation orientation) {
String o;
switch (orientation) {
case DeviceOrientation.portraitUp:
o = 'portraitUp';
break;
case DeviceOrientation.portraitDown:
o = 'portraitDown';
break;
case DeviceOrientation.landscapeLeft:
o = 'landscapeLeft';
break;
case DeviceOrientation.landscapeRight:
o = 'landscapeRight';
break;
}
return _channel.invokeMethod('change_screen_orientation', [o]);
}
代码不用过多说明了， 有不了解的可以留言
问题3: 启动程序自动旋转
SystemChrome.setPreferredOrientations需要设置全部内容。不然会默认旋转。有点小坑，
以上基本上可以实现屏幕旋转的问题，如果有小伙伴还是不行，可以试一下用iOS原生通知的方式去完成。这个我做的是平板的项目，暂时没有问题，更多相关Flutter 控制屏幕旋转内容请搜索Devmax以前的文章或继续浏览下面的相关文章希望大家以后多多支持Devmax！
