概述

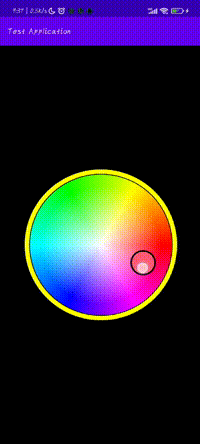

这是一个自定义色盘，根据点，直线和圆的几何学加上hsv颜色模型完成
技术点
几何：
圆的标准方程式：
(x-a)² (y-b)²=r²
直线一般方程式：
已知直线上的两点P1(X1,Y1) P2(X2,Y2)， P1 P2两点不重合。
AX BY C=0
A = Y2 - Y1
B = X1 - X2
C = X2*Y1 - X1*Y2
点与圆的位置关系：
点在圆内、点在圆上、点在圆外。假设圆的半径为r，点到圆心的距离为d，则有：d＜r点在圆内，d=r点在圆上，d＞r点在圆外。
点P（x1,y1) 与圆(x-a)² (y-b)²=r²的位置关系：
当(x-a)² (y-b)²＞r²时，则点P在圆外。
当(x-a)² (y-b)²=r²时，则点P在圆上。
当(x-a)² (y-b)²＜r²时，则点P在圆内。
直线的斜率：
一条直线与某平面直角坐标系横轴正半轴方向的夹角的正切值即该直线相对于该坐标系的斜率
斜率 k=tanα（α倾斜角）
与x轴垂直的直线不存在斜率
直线的斜率公式为：k=y2-y1）/（x2-x1）或（y1-y2）/（x1-x2）
象限：
记（x,y) 是象限中的一点
第一象限中的点：x > 0, y > 0
第二象限中的点：x < 0, y > 0
第三象限中的点：x < 0, y < 0
第四象限中的点：x > 0, y < 0
值得注意的是原点和坐标轴上的点不属于任何象限。

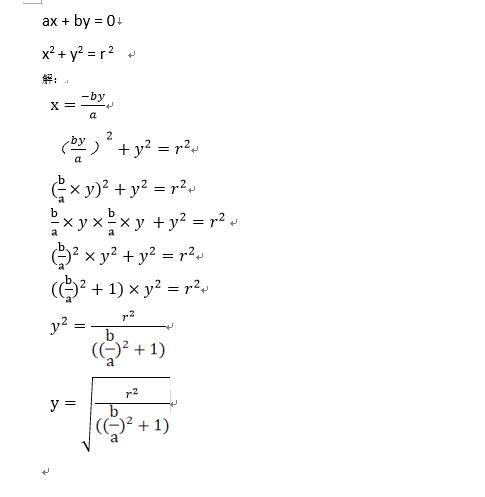

解方程:
Android：
自定义View、ComposeShader、SweepGradient、RadialGradient、Paint。
上源码
代码都比较简单这里就不介绍了
class RoundColorPaletteHSV360 constructor(context: Context, attrs: AttributeSet?, defStyleAttr:Int): View(context,attrs,defStyleAttr) {
constructor(context: Context):this(context,null,0)
constructor(context: Context,attrs: AttributeSet?):this(context,attrs,0)
//取色范围半径
var radius:Float = 0f
private set(value){
field = value-stroke-gap-colorRadius
}
//取色圆半径
var colorRadius = 50f
set(value){
if (value >= 0)
field = value
}
//取色圆边框半径
var colorStroke = 8f
set(value){
if (value >= 0)
field = value
}
//取色圆边框颜色
var colorStrokeColor = Color.BLACK
//取色颜色
var color = Color.WHITE
//边框半径
var stroke = 24f
set(value){
if (value >= 0)
field = value
}
//边框颜色
var strokeColor = Color.YELLOW
//间隙半径
var gap = 4f
set(value){
if (value >= 0)
field = value
}
var isOutOfBounds:Boolean = false
private val paint = Paint()
private val colors1:IntArray
private val positions1 :FloatArray
private val colors2:IntArray
private val positions2 :FloatArray
private var xColor: Float = 0f
private var yColor: Float = 0f
private var colorChangeCallBack: ColorChangeCallBack? = null
init {
// <declare-styleable name="RoundColorPaletteHSV360">
// <attr name="colorRadius" format="dimension"/>
// <attr name="colorStroke" format="dimension"/>
// <attr name="gap" format="dimension"/>
// <attr name="stroke" format="dimension"/>
// <attr name="colorStrokeColor" format="color"/>
// <attr name="strokeColor" format="color"/>
// <attr name="isOutOfBounds" format="boolean"/>
// </declare-styleable>
val typedArray = context.obtainStyledAttributes(attrs, R.styleable.RoundColorPaletteHSV360)
colorRadius = typedArray.getDimension(R.styleable.RoundColorPaletteHSV360_colorRadius,50f)
colorStroke = typedArray.getDimension(R.styleable.RoundColorPaletteHSV360_colorStroke,8f)
gap = typedArray.getDimension(R.styleable.RoundColorPaletteHSV360_gap,4f)
stroke = typedArray.getDimension(R.styleable.RoundColorPaletteHSV360_stroke,24f)
colorStrokeColor = typedArray.getColor(R.styleable.RoundColorPaletteHSV360_colorStrokeColor,Color.BLACK)
strokeColor = typedArray.getColor(R.styleable.RoundColorPaletteHSV360_strokeColor,Color.YELLOW)
isOutOfBounds = typedArray.getBoolean(R.styleable.RoundColorPaletteHSV360_isOutOfBounds,false)
typedArray.recycle()
val colorCount1 = 360
val colorCount2 = 255
val colorAngleStep = 360 / colorCount1
positions1 = FloatArray(colorCount1 1){i-> i/(colorCount1*1f)}
var hsv = floatArrayOf(0f, 1f, 1f)
colors1 = IntArray(colorCount1 1){ i->
hsv[0] = 360 - i * colorAngleStep % 360f
Color.HSVToColor(hsv)
}
hsv = floatArrayOf(0f, 0f, 1f)
positions2 = FloatArray(colorCount2 1){i-> i/(colorCount2*1f)}
colors2 = IntArray(colorCount2 1){ i->
Color.HSVToColor(255 * (colorCount2 -i) / colorCount2 , hsv)
}
}
override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
val width = MeasureSpec.getSize(widthMeasureSpec)/2f
val height = MeasureSpec.getSize(heightMeasureSpec)/2f
radius = if(width-height<0) width else height
super.onMeasure(widthMeasureSpec, heightMeasureSpec)
}
@SuppressLint("DrawAllocation")
override fun onDraw(canvas: Canvas?) {
createColorWheel(canvas)
createColorRadius(canvas,xColor,yColor)
super.onDraw(canvas)
}
//色盘
private fun createColorWheel(canvas: Canvas?){
paint.reset()
paint.isAntiAlias = true
paint.shader = ComposeShader(
SweepGradient(
width / 2f,
height / 2f,
colors1,
positions1
), RadialGradient(
width / 2f,
height / 2f,
radius-colorRadius,
colors2,
positions2,
Shader.TileMode.CLAMP
), PorterDuff.Mode.SRC_OVER)
canvas?.drawCircle(width / 2f,height / 2f,radius,paint)
paint.shader = null
paint.style = Paint.Style.STROKE
paint.strokeWidth = stroke.toFloat()
paint.color = strokeColor
canvas?.drawCircle(width / 2f,height / 2f,radius gap stroke/2,paint)
}
//取色圆
private fun createColorRadius(canvas: Canvas?, rx: Float, ry: Float){
var x = rx
var y = ry
if(x==0f || y==0f ){
x = width / 2f
y = height / 2f
}
paint.reset()
paint.isAntiAlias = true
paint.color = color
canvas?.drawCircle(x,y,colorRadius,paint)
paint.style = Paint.Style.STROKE
paint.color = colorStrokeColor
paint.strokeWidth = colorStroke
canvas?.drawCircle(x,y,colorRadius colorStroke/2,paint)
}
fun setColorChangeCallBack(colorChangeCallBack: ColorChangeCallBack){
this.colorChangeCallBack = colorChangeCallBack
}
override fun onTouchEvent(event: MotionEvent?): Boolean {
event?.let {
val pointToCircle = pointToCircle(it.x, it.y)
if( pointToCircle <= radius - if(isOutOfBounds) 0f else (colorRadius-colorStroke)){
xColor = it.x
yColor = it.y
color = Color.HSVToColor(floatArrayOf((angdeg(it.x,it.y)),pointToCircle/radius,1f))
colorChangeCallBack?.onChange(color)
}else{
findPoint( it.x, it.y)
}
invalidate()
}
return true
}
//点到圆心距离
private fun pointToCircle(x: Float = width / 2f, y: Float = height / 2f ) =
sqrt((x - width / 2f)*(x - width / 2f) (y-height / 2f)*(y-height / 2f))
//离目标最近的点 待开发
private fun findPoint(x1: Float = width / 2f, y1: Float = height / 2f ){
// 直线一般方程
// 以圆心为坐标0，0 重新计算点（a，b）坐标
val a = y1 - height / 2f
val b = x1 - width / 2f
val r = radius - if(isOutOfBounds) 0f else (colorRadius-colorStroke)
//r^2/((b/a)^2 1)的开平方
yColor = sqrt( (r * r) / ((b / a) * (b / a) 1))
//判断开平方的正负值
if(a<0) yColor = -yColor
xColor = (b*yColor)/a width / 2f
yColor = height / 2f
color = Color.HSVToColor(floatArrayOf((angdeg(xColor,yColor)),1f,1f))
colorChangeCallBack?.onChange(color)
}
//角度
private fun angdeg(x: Float = width / 2f, y: Float = height / 2f ):Float{
var angdeg = 0
//特殊角度, 与x轴垂直不存在斜率
if(x - width / 2f == 0f && y - height / 2f < 0){
angdeg = 90
}else{
//到圆心的斜率
val k = ((y-height / 2f)*(y-height / 2f))/((x - width / 2f)*(x - width / 2f))
//二分法
var min = 0.00
var max = 90.00
while(max-min>1){
val deg = min (max - min) / 2
if(k>tan(toRadians(deg))) min = deg else max = deg
}
angdeg = (max-1).toInt()
}
if((x - width / 2f <= 0f && y - height / 2f <= 0f)) {//第二象限 90~180
angdeg = 180 - angdeg
}else if((x - width / 2f <= 0f && y - height / 2f >= 0f)) {//第三象限 180~270
angdeg = 180
}else if((x - width / 2f >= 0f && y - height / 2f >= 0f)) {//第四象限 270~360
angdeg = 360 - angdeg
}
return angdeg.toFloat()
}
interface ColorChangeCallBack{
fun onChange(@ColorInt color: Int)
}
}# 圆形取色盘
#### 仓库地址
https://gitee.com/yangguizhong/circular-color-plate
#### 安装教程
gradle 7.0以上的在 settings.gradle 添加：
```
dependencyResolutionManagement {
repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
repositories {
google()
mavenCentral()
maven {url "https://gitee.com/yangguizhong/circular-color-plate/raw/master"}
jcenter() // Warning: this repository is going to shut down soon
}
}
```gradle 7.0以下的在根 build.gradle 添加：
```
allprojects {
repositories {
google()
mavenCentral()
maven {url "https://gitee.com/yangguizhong/circular-color-plate/raw/master"}
}
}
```build.gradle 添加：
``` implementation 'com.xiaotie.colorPicker:colorPicker:1.0.0' ```
#### 使用说明
```
<com.wifiled.ipixels.view.RoundColorPaletteHSV360
android:id="@ id/color_picker"
android:layout_width="300dp"
android:layout_height="300dp"
app:gap="1dp"//取色背景和背景边框的间隙
app:colorRadius="20dp"//取色圆的半径
app:colorStroke="3dp"//取色圆的边框宽度
app:stroke="8dp"//背景边框的宽度
app:strokeColor="#FFF7A6"//背景边框的颜色
app:isOutOfBounds="true"//是否超出边框
app:colorStrokeColor="#2E3C3C"//取色圆的边框宽度
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
```
```
colorPickerView.setColorChangeCallBack(object:RoundColorPaletteHSV360.ColorChangeCallBack{
override fun onChange(color: Int) {
//返回的颜色
}
})
```到此这篇关于安卓实现自定义圆形取色盘 的文章就介绍到这了,更多相关Android实现圆形取色盘 内容请搜索Devmax以前的文章或继续浏览下面的相关文章希望大家以后多多支持Devmax！
