前言
无论是顶部还是底部导航栏，都是大多数APP的标配，网络上的相关实现教程也非常之多。最近回忆起以前写的小项目，发现对这块内容有些遗忘，不妨就再整理一遍代码逻辑，记录下来，方便日后查阅（指复制粘贴）。
实现的方式有很多，本文采用以下方式实现：
- 底部导航栏：Fragment BottomNavigationView
- 顶部导航栏：Fragment ViewPager2 TabLayout
底部导航栏
<布局文件>
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" xmlns:app="http://schemas.android.com/apk/res-auto"> <FrameLayout android:id="@ id/main_page_controller" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_marginBottom="50dp" android:background="#EFEEEE"/> <com.google.android.material.bottomnavigation.BottomNavigationView android:id="@ id/main_navigation_bar" android:layout_width="match_parent" android:layout_height="50dp" android:layout_alignParentBottom="true" android:background="#ffffff" app:itemIconTint="@color/navigation_bar_color" app:itemTextColor="@color/navigation_bar_color" app:labelVisibilityMode="labeled" app:menu="@menu/navigation_items"/> </RelativeLayout>
<menu文件>
<?xml version="1.0" encoding="utf-8"?> <menu xmlns:android="http://schemas.android.com/apk/res/android"> <item android:id="@ id/home" android:icon="@mipmap/home" android:title="首页"/> <item android:id="@ id/plan" android:icon="@mipmap/plan" android:title="日程"/> <item android:id="@ id/game" android:icon="@mipmap/game" android:title="娱乐"/> <item android:id="@ id/setting" android:icon="@mipmap/setting" android:title="设置"/> </menu>
<MainActivity.java>
public class MainActivity extends AppCompatActivity {
private BottomNavigationView mNavigationView;
private FragmentManager mFragmentManager;
private Fragment[] fragments;
private int lastFragment;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
mNavigationView = findViewById(R.id.main_navigation_bar);
initFragment();
initListener();
}
private void initFragment() {
HomeFragment mHomeFragment = new HomeFragment();
PlanFragment mPlanFragment = new PlanFragment();
GameFragment mGameFragment = new GameFragment();
SettingFragment mSettingFragment = new SettingFragment();
fragments = new Fragment[]{mHomeFragment, mPlanFragment, mGameFragment, mSettingFragment};
mFragmentManager = getSupportFragmentManager();
//默认显示HomeFragment
mFragmentManager.beginTransaction()
.replace(R.id.main_page_controller, mHomeFragment)
.show(mHomeFragment)
.commit();
}
private void initListener() {
mNavigationView.setOnNavigationItemSelectedListener(new BottomNavigationView.OnNavigationItemSelectedListener() {
@Override
public boolean onNavigationItemSelected(@NonNull MenuItem item) {
switch (item.getItemId()) {
case R.id.home:
if (lastFragment != 0) {
MainActivity.this.switchFragment(lastFragment, 0);
lastFragment = 0;
}
return true;
case R.id.plan:
if (lastFragment != 1) {
MainActivity.this.switchFragment(lastFragment, 1);
lastFragment = 1;
}
return true;
case R.id.game:
if (lastFragment != 2) {
MainActivity.this.switchFragment(lastFragment, 2);
lastFragment = 2;
}
return true;
case R.id.setting:
if (lastFragment != 3) {
MainActivity.this.switchFragment(lastFragment, 3);
lastFragment = 3;
}
return true;
}
return false;
}
});
}
private void switchFragment(int lastFragment, int index) {
FragmentTransaction transaction = mFragmentManager.beginTransaction();
transaction.hide(fragments[lastFragment]);
if (!fragments[index].isAdded()){
transaction.add(R.id.main_page_controller,fragments[index]);
}
transaction.show(fragments[index]).commitAllowingStateLoss();
}
}<实现效果>
顶部导航栏
<布局文件>
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" xmlns:app="http://schemas.android.com/apk/res-auto" android:orientation="vertical"> <com.google.android.material.tabs.TabLayout android:id="@ id/home_indicator" android:layout_width="match_parent" android:layout_height="30dp" app:tabGravity="fill" /> <androidx.viewpager2.widget.ViewPager2 android:id="@ id/home_pager" android:layout_width="match_parent" android:layout_height="match_parent"/> </LinearLayout>
<ViewPgaer2适配器>
public class HomePagerAdapter extends FragmentStateAdapter {
private List<String> mData = new ArrayList<>();
public HomePagerAdapter(@NonNull FragmentActivity fragmentActivity, List<String> data) {
super(fragmentActivity);
mData = data;
}
@NonNull
@Override
public Fragment createFragment(int position) {
return HomePageFragment.newInstance(mData.get(position));
}
@Override
public int getItemCount() {
return mData.size();
}
}<HomeFragment.java>
public class HomeFragment extends Fragment {
private TabLayout mTabLayout;
private ViewPager2 mViewPager2;
private List<String> mData = new ArrayList<>();
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
View rootView = inflater.inflate(R.layout.fragment_home, container, false);
initData();
initView(rootView);
return rootView;
}
private void initView(View rootView) {
mTabLayout = rootView.findViewById(R.id.home_indicator);
mViewPager2 = rootView.findViewById(R.id.home_pager);
HomePagerAdapter homePagerAdapter = new HomePagerAdapter(getActivity(), mData);
mViewPager2.setAdapter(homePagerAdapter);
new TabLayoutMediator(mTabLayout, mViewPager2, new TabLayoutMediator.TabConfigurationStrategy() {
@Override
public void onConfigureTab(@NonNull TabLayout.Tab tab, int position) {
tab.setText(mData.get(position));
}
}).attach();
}
private void initData() {
mData.add("页面1");
mData.add("页面2");
mData.add("页面3");
mData.add("页面4");
mData.add("页面5");
}
}<HomePageFragment.java>
public class HomePageFragment extends Fragment {
private static final String ARG_PARAM1 = "param1";
private String mParam1;
private TextView textView;
public HomePageFragment() {
}
public static HomePageFragment newInstance(String param1) {
HomePageFragment fragment = new HomePageFragment();
Bundle args = new Bundle();
args.putString(ARG_PARAM1, param1);
fragment.setArguments(args);
return fragment;
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
if (getArguments() != null) {
mParam1 = getArguments().getString(ARG_PARAM1);
}
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
View rootView = inflater.inflate(R.layout.fragment_home_page, container, false);
textView = rootView.findViewById(R.id.home_page_tv);
textView.setText(mParam1);
return rootView;
}

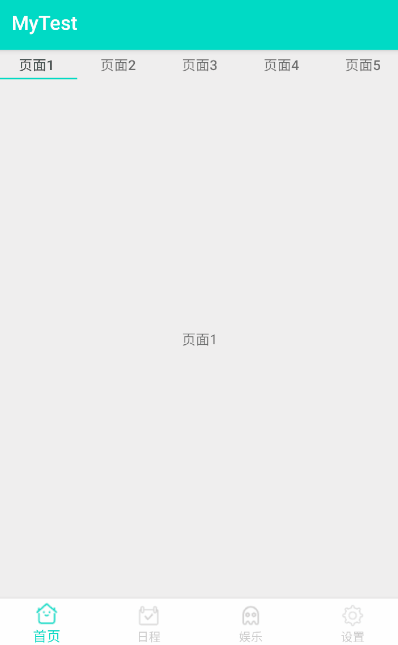

}<实现效果>
以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持Devmax。
